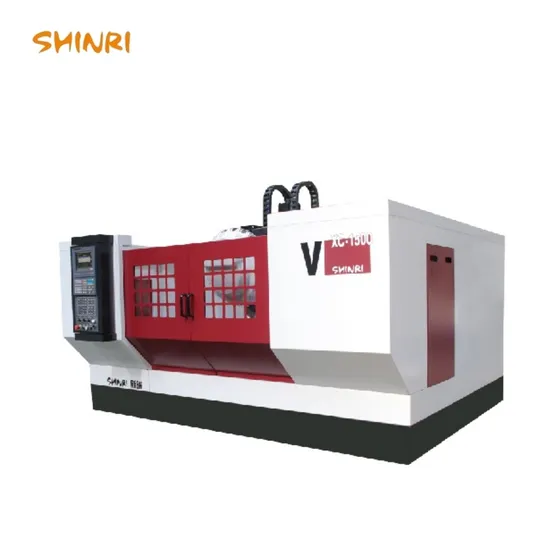

Vxc-1500 3-Axis Profile Vertical Machining Center 1500 Travel 20000 Spindle Speed Practical CNC Machine Center Fanuc Siemens Systems

Product Description

Product Parameters

Specification	Unit	VXC-1500	VXC-3000
Worktable dimension	mm	1500×400	3000×400
Max. loading of table	kg	500	1000
T-slot width	mm	14	14
X/Y/Z axis travel	mm	1500/420/330	3000/420/330
Spindle speed	r/min	20000	20000
Power of spindle motor	kW	3.7/5.5	3.7/5.5
Table speed	r/min	2500	Rotate axis: 100
			Tilting axis: 25
Tool capacity	tools	21	21
Tool-to-tool	″	1.8	1.8
Overall dimension	mm	3800×3255×2850	5300×3255×2850
Weight	T	5.5	6.5

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.
