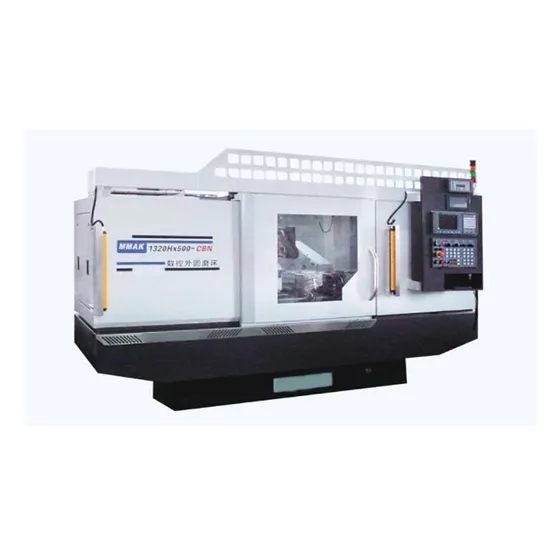

Mks1320-CBN Mks1332-CBN, CNC High-Speed Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features
•This machine is a two-axis two-linkage CNC high-speed cylindrical grinding machine, which has strong processing flexibility, simple and reliable operation, and has the characteristics of high rigidity, high efficiency and high reliability.
• The machine adopts a stable and firm high-grade HT300 cast iron bed, and the flat and V guide is scraped by hand.
• The spindle of the wheelstock adopts a high-rigidity sleeve type dynamic pressure spindle, which has the characteristics of high rotation accuracy and strong bearing capacity. The linear speed of CBN grinding wheel can reach 100m/s, which can meet high-efficiency production.
• The movement of the table and the wheelstock are driven by AC servo motors with high-precision ball screws, and the feed is sensitive.
• The feed of the wheelstock adopts roller linear guide, which has large bearing capacity and high sensitivity, and can ensure the feed accuracy of the wheelstock and low friction linear motion.
• The headstock is driven by an AC servo motor through a synchronous belt to realize stepless speed .
• Various types of diamond dressing devices can be selected for dressing of grinding wheels to realize precise dressing of complex grinding wheel shapes and automatic compensation
• The machine is equipped with a full protective cover, which is safe and reliable in operation and convenient for on-site management.
Product Parameters

Description	(unit)	MKS1320×500/750-CBN	MKS1332×600/1000/1500/2000/3000-CBN
External grinding diameter (mm)		φ8~φ200	φ8~φ320
Maximum grinding length (mm)		500,750	600,1000,1500,2000,3000
Center height (mm)		135	180
Center distance (mm)		500,750	600,1000,1500,2000,3000
headstock center (morse)		4#	5#
tailstock center (morse)		4#	4# 5#(2000/3000)
Max. weight of workpiece (Kg)		50	150 500(special)
Wheel size (mm)		φ500×B×203	φ600×B×305
Linear speed of grinding wheel (m/s)		100	100
Spindle speed of grinding wheel (r/min)		3820	3180
XMin. Pulse amount of X-axis (mm)		0.001	0.001
ZMin. Pulse amount of Z-axis (mm)		0.001	0.001
XX-axis servo motor (Nm)		11,11	16,16,18,18,28
ZZ-axis servo motor (Nm)		11,11	16,16,18,18,28
Total capacity of motor (KW)		15,15	25,25,28,28,30
