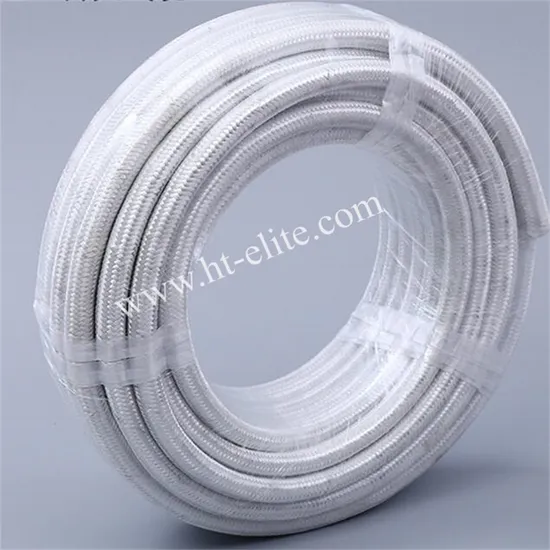

Industrial 500c 800c 1000c Mica Fiberglass High Temperature Heat Resistant Wire
| US$0.40-1.50 | 300 Meters (MOQ) |
Basic Info.
Model NO.
AWG 8-18
Application
Heating
Conductor Material
Pure Nickel or Copper Alloy
Sheath Material
Fiberglass
Insulation Material
Silicone Rubber
Material Shape
Round Wire
Range of Application
Industrial
Certification
ISO9001, CE
Brand
No Brand
Colour
Black, White, Red, etc
Package
100/200/305/610m Per Roll
Conductor
Copper or Pure Nickel
ISO
Yes
Lead Time
10-15 Working Days
Transport Package
in Roll, Spool+Carton
Specification
AWG 24, 22, 20, 18, 16, 14, 12
Trademark
no
Origin
China
HS Code
8544491900
Production Capacity
10, 0000 Meters
Packaging & Delivery
Package Size
27.00cm * 27.00cm * 27.00cm
Package Gross Weight
6.000kg
Product Description
Industrial Electric Mica Fiberglass High Temperature WireProduct Description 1. Introduction:
Name: Mica Fiberglass High Temperature Wire Cable
Size: 26AWG~4/0 AWG
| 1 | Flexible nickel core |
| 2 | Fiberglass braid with high temperature finish |
| 3 | Mica tape |
| 4 | Fiberglass braid silicone impregnate with high temperature finish |
2. Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.
2. Parameter:
| SizeAWG | ConductorStructure | Insulation Thickness(mm) | Braid Thickness(mm) | Diameter(mm) |
| 26 | 7/0.16 | ≥0.64 | ≥0.18 | 2.0±0.2 |
| 24 | 7/0.2 | 2.3±0.2 | ||
| 22 | 7/0.254 | 2.4±0.2 | ||
| 20 | 10/0.254 | 2.6±0.2 | ||
| 18 | 16/0.254 | 2.8±0.2 | ||
| 16 | 26/0.254 | 3.2±0.2 | ||
| 14 | 41/0.254 | 3.6±0.2 | ||
| 12 | 65/0.254 | 4.2±0.2 | ||
| 10 | 103/0.254 | ≥0.76 | ≥0.38 | 5.2±0.2 |
| 8 | 163/0.254 | 6.6±0.2 | ||
| 6 | 266/0.254 | 7.1±0.2 | ||
| 4 | 420/0.254 | 8.3±0.2 |
| Main technical parameters | |
| Conductor Resistance | 0.5 Ω /M/3m Min |
| Dielectric Strength | AC1000V,Leakage Currence less than 0.25MA(3m) |
| Insulation Resistance | DC 500V 100MΩ /3M MIN |
| Flex test | 300G,90° degree each side,6cycles/min,morn than 3000 cycles |
| Adhesion Test | Insulation adhesion during 1.15-2.5 LBS,Jack adhesion during 2-8LBS |
| Relative humidity | ≤80% |
| Atmospheric pressure | 700hPa~1060hPa |
Ratings: -60°C~+450°C, 600V
Conductors: Nickel copper, Nickel
Insulation: Mica tape, fiberglass braid
Jacket: Fiberglass braid with high temperature finish
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.
5. Packing Methods Packages:
