Optix Rtn 320f Rtn320 2f Full Outdoor Dual Channel Microwave Communication Equipment

Product Description

Product Description
Full-outdoor Dual-channel OptiX RTN 320F
OptiX RTN 320 2 * GE (RJ45)+2 * 10GE (SFP+)+2 intermediate frequency unit OAU2F module (-48VDC)
The OptiX RTN 320F (RTN 320F for short) is a next-generation, full-outdoor, and dual-channel product in the OptiX RTN radio transmission system series. There are two types of the OAU 2F: OAU 2F (DC option) and OAU 2F (P&E
option). Unless otherwise specified, the OAU 2F represents these two types.

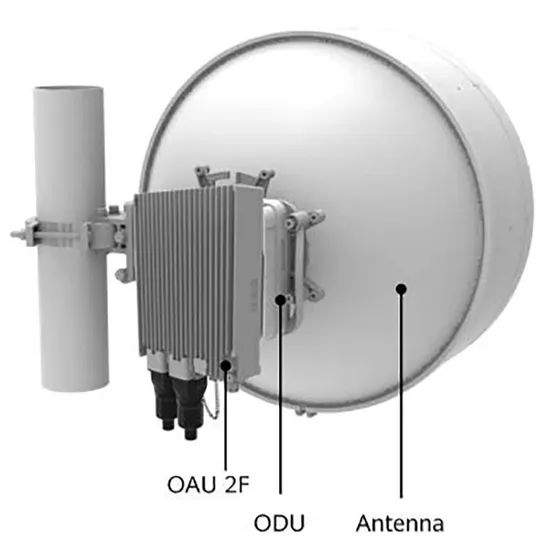

The RTN 320F uses a full-outdoor split structure and consists of the OAU 2F and ODU.
The OAU 2F is the baseband signal processing unit which performs service access, multiplexing, IF processing, and system control and communication. It provides two IF ports, with each IF port connected to an ODU using an IF cable. In this manner, two microwave links are available.
The hardware versions for the OAU 2F (DC option) are SLG2DMD4D VER.B,SLG2DMD4DA VER.B, and SLG2DMD4D VER.C, and those for the OAU 2F (P&E option) are SLG2DMD4DA VER.B and SLG2DMD4P VER.C.
Technical Specification

Network layer	Outdoor microwave RTN320F
Frequency band	6 ~ 42 GHz
Channel spacing	ETSI:7MHz,14MHz,28MHz,40MHz,56MHz,112MHz FCC:30MHz,40MHz,50MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK strong~ 8192QAM
RF direction	2
Air port capacity	Air port capacity: 2 Gbit/s Air traffic throughput: 2.5 Gbit/s Switching capacity: 30 Gbit/s
Link Aggregation	2-4
Interface type	2-way 10GE SFP interface 2-way FE/GE fixed electrical interface 2-way IF interface USB interface, network management interface, MIMO/CA cascade interface (hardware reserved)
RF configuration method	•1+0 •2+0 •XPIC •Multi-direction •1+1 HSB/FD/SD
Network management	U2000,Web LCT,SNMP
Business type	E-Line and E-LAN
Ethernet OAM	IEEE 802.1ag,IEEE 802.3 ah,ITU-T Y.1731
Antenna	Parabolic antenna: 0.3m~3.7m
IDU weight	4.3KG
IDU size	220mm*300mm*60mm
Environment	Temperature: -33 ºC~+55 ºC Humidity: 5% to 100% Protection level: IP66
Power supply	DC
Authenticated document	CE,RCM, FCC,IC,ETL,MCMC
