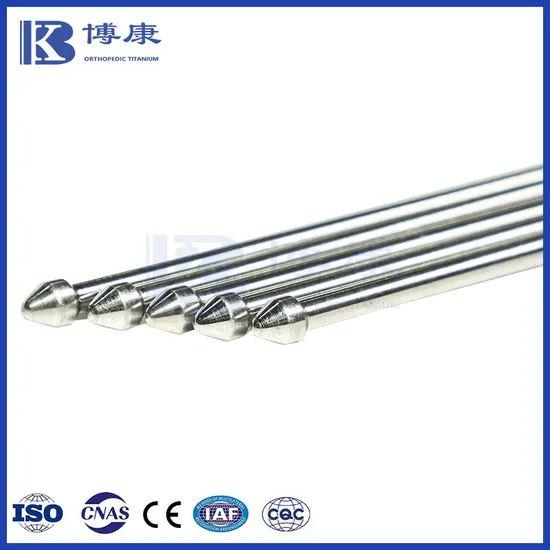

Niti Shape Memory Alloy Guidewire for Spinal Correction and Fracture Fixation

Product Description

Product Description Nickel-Titanium Guide Pins Description:
Nickel-titanium guidepins are high-performance medical devices made from nickel-titanium alloy, renowned for their exceptional elasticity and shape memory properties. Their outstanding flexibility and recovery ability allow them to navigate complex medical pathways without damaging surrounding tissues.
Nickel-Titanium Guide Wires Specifications

Grade	NiTi
Standard	ASTM F2063,Customized
Diameter(mm)	Φ0.2~1.5
Tolerance	Customized
Shape	Coils, Spools, Rod, Wire

High-quality nitinol products with various diameters, tolerances and performances can be customized according to requirements
Nickel-Titanium Guide Pins Features:
No holes and cracks on the surface
High surface smoothness
Good roundness
Small tolerance
High dimensional consistency
Stable performance
Uniform composition
Low impurity content
Fine grain organization
Excellent comprehensive performance
Long fatigue life
Superelasticity and shape memory properties
Nickel-Titanium Guide Pins Production Process:
Sponge Titanium→Compacting Electrodes→Electrode Welding→Triple VAR Melting→Machining→Forging Billet→UT testing→Rolling Billet→Online Straightening→Centerless Lathe→UT testing→Rolling→Metallographic Inspection→Wire Drawing→Precision Straightening→Heat Treatment→Mechanical test→Microstructure test→Centerless Grinder→UT testing→Eddy Current Test→Polishing→Visual and dimension inspection→Product Marking→Packaging→Delivery
Applications of Nickel-Titanium Guide Pins
1. Cardiovascular Interventions: Nickel-titanium guide pins are commonly used in cardiovascular interventions, such as coronary artery stent implantation and cardiac catheterization. Their high elasticity and flexibility allow them to easily navigate narrow and curved vascular paths, reducing surgical risks.
2. Neurointerventions: In neurosurgery, nickel-titanium guide pins are used for minimally invasive procedures, such as embolization of cerebral aneurysms. Their precise guiding ability and controllability make surgeries safer and more efficient.
3 . Urology: These guide pins are widely used in urological procedures, including catheter placement and lithotripsy. Their anti-kink properties and shape memory effect help them smoothly pass through narrow parts of the urinary system.
4 . Gastrointestinal Treatment: Nickel-titanium guide pins are used in endoscopic operations of the digestive system, such as polyp removal and intestinal obstruction treatment. Their flexibility and biocompatibility minimize irritation and damage to the gastrointestinal mucosa.
5.Orthopedic Surgery: Nickel-titanium guide pins are extensively used in orthopedic surgery for spinal correction and fracture fixation. Their high strength and fatigue resistance ensure long-term stability and reliability.
Chemical Composition Chemical Composition
ASTM F2063-12 Chemical Requirements:

Element	Composition,% (mass/mass)
Nickel	54.5 to 57.0
Carbon (Maximum)	0.050
Cobalt (Maximum)	0.050
Copper (Maximum)	0.010
Chromium(Maximum)	0.010
Hydrogen(Maximum)	0.005
Iron (Maximum)	0.050
Niobium (Maximum)	0.025
Nitrogen plus Oxygen(Maximum)	0.050
Titanium	Balance

Mechanical Properties Mechanical Properties
ASTM F2063-12 Standard mechanical properties:

Diameter Mm(in)	Tensile strength MPa, Minimum	Elongation in 50.0 mm [1.97 in.] or 4 D, % Minimum
≤50 (<1.97 in)	551 (79.9 KSI)	15
>50(>1.97 in)	551 (79.9 KSI)	10

Nitinol Tolerance Requirements
ASTM F2063-12 Standard tolerance requirements:

As (°C)	Tolerance Range (°C)
≥70	± 7
50 < As < 70	± 10
≤-50	± 15

Product Category

Titanium Bar/Rod	Titanium Wire	Titanium Disc
Titanium Ingot	Nitinol/Nickel Titanium	Artificial Joint Castings

Certifications
About Bokang
Our Advantages
FAQ Q: Are you a direct manufacturer or trading company?
A: We're a manufacturer with more than 18 years of professional production experience.
Q: Do you offer free samples?
A: Usually, our sample is free but we need our customer to pay the freight.
Q: What is the minimum quantity per order?
A: 1 kg. For regular standard medical and aerospace materials, based on our production capacity of 20 tons per month for titanium wire and rods. the stock inventory could meet all your requirements.
Q: What products can you offer?
A: We specialize in the production of pure titanium, titanium alloy, titanium rods, wires, discs, nitinol alloy, etc.,
Q: What's the payment term?
A: When we quote for you, we will confirm with you the way of transaction, FOB, CIF, CNF, etc.
For mass-production goods, you need to pay 30% deposit before producing and 70% balance against a copy of documents. The common way is by T/T. L/C is also acceptable.
Q: What applications do your products relate to?
A: Our titanium alloys and nitinol alloys are widely used in medical, aerospace, and other Industries.
Q: How can we get your price?
A: We need the below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
Q: Can you do customized products?
A: Yes, we support customized products according to the customers' drawings or samples.
Q: How do you guarantee the quality of your goods?
A: We ensure quality by inspecting every process and using advanced testing equipment to conduct comprehensive checks, ensuring finished products meet customer and international standards.
Q: How do you deliver the goods to us?
A: We will usually ship the goods by sea and air according to your requirements.
