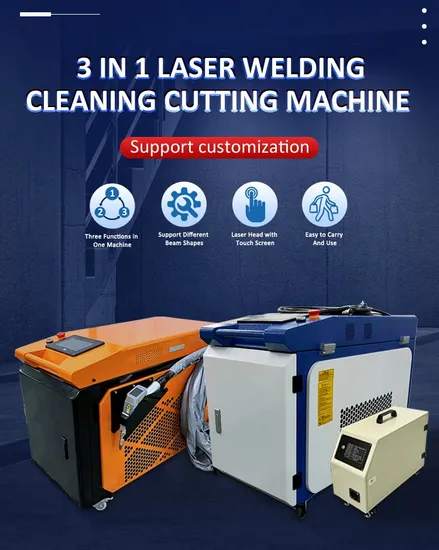

1000W 1500W 2000W Handheld 3 in 1 Laser Machine with Touch Screen

Product Description

Industrial CNC Metal Processing 3 In 1 Laser Machines With Touch Screen

Features of 3 IN 1 Laser Machine:
1.Wide welding range: the hand-held welding head is equipped with 10M original optical fiber, which overcomes the limitation of the workbench space and can be used for outdoor welding and long-distance welding;
2.Convenient and flexible use: Hand-held laser welding is equipped with moving pulleys, which is comfortable to hold and can adjust the station at any time without fixed-point stations. It is free and flexible, and is suitable for various working environment scenarios.
3.A variety of welding methods: welding at any angle can be realized: lap welding, butt welding, vertical welding, flat fillet welding, inner fillet welding, outer fillet welding, etc., and can be used for workpieces with various complex welds and irregular shapes of larger workpieces welding. Realize welding at any angle. In addition, it can also complete the cutting, welding and cutting can be switched freely, just change the welding copper nozzle to the cutting copper nozzle, which is very convenient.
4.Cutting, welding, and cleaning are often closely connected upper and lower processes in metal processing operations. The traditional operation method often requires three different operating equipment to carry out three processes. In response to this problem, we provide customers with an integrated solution and launch a handheld laser cutting and welding all-in-one machine! This is a device with triple functions of laser welding, cleaning and cutting.
5. Quickly and easily removes oil, rust and coatings before welding, and removes debris and discoloration after welding, while performing cutting processes on a variety of plates. It can conveniently and efficiently help customers achieve the best work efficiency and meet most work scenarios. The welding swing width is as high as 5mm, and the cleaning swing length is up to 100mm. It can cut stainless steel plates below 6mm. The process index is strong, especially the cleaning index is almost unmatched!

Model	FL-HW1000	FL-HW1500	FL-HW2000
Laser Wavelength	1070nm Fiber Laser
Nominal Laser Power	1000W	1500W	2000W
Cooling System	Water Cooling
Way of working	Continuous / Modulation
Speed range of welder	0~120 mm/s
Focal Spot Diameter	0.5mm
Ambient temperature range	15~35 ºC
Environmental humidity range	<70% without condensation
Welding thickness	0.5-1.5mm	0.5-2mm	0.5-3mm
Welding gap requirements	≤1.2mm
Operating Voltage	AC 220V/50HZ 60HZ/ 380V±5V 50HZ 60HZ 60A
Cabinet Dimension	100*45*68CM
Wooden Package Dimension	108*58*97CM
Weight	165KG
Fiber length	Standard 10M, the longest customized length is 15M
Application	Welding and repairing stainless steel, carbon steel, aluminum alloy

Material	Output power (W)	Maximum penetration (mm)
Stainless steel	1000	0.5-3
Stainless steel	1500	0.5-4
Stainless steel	2000	0.5-5
Carbon steel	1000	0.5-2.5
Carbon steel	1500	0.5-3.5
Carbon steel	2000	0.5-4.5
Aluminum alloy	1000	0.5-2.5
Aluminum alloy	1500	0.5-3
Aluminum alloy	2000	0.5-4
Galvanized sheet	1000	0.5-1.2
Galvanized sheet	1500	0.5-1.8
Galvanized sheet	2000	0.5-2.5
