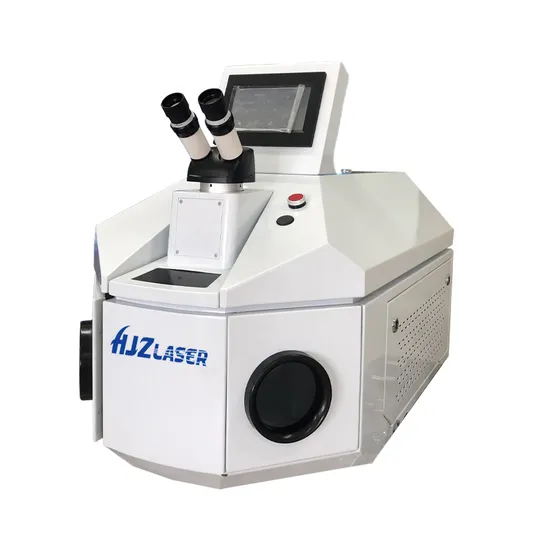

Lowest Price Jewelry Laser Welding Machine Medical Equipment Spot Welding Processing Dental Filling Crafts

Product Description

Lowest Price Jewelry Laser Welding Machine Medical Equipment Spot Welding Processing Dental Filling Crafts
Advantages:
1. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
2. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours.
5. Human-based design accords with ergonomics, avoiding fatigue after long time working. This welder is specially developed for laser welding of jewelry used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
Configuration:

Specification of laser welding machine
Model	HJZ-JW
Maximum Output	200W
PowerLaser Wavelength	1064nm
Minimum Diameter of Laser Spot	0.2mm
Maximum Single Pulse Energy	120J
Pulse Width	0.1-20ms Continuously Adjustable
Repetition Frequency	1-150Hz Continuously Adjustable
Energy Stability for Continuous Output	yes
Red Light spot	0.2-3.0mm
Focus spot	0.1-3.0mm
Power Supply	AC220V, 50HZ
Single package	84X45X50 cm
G.Weight	Approximately 108kg
Package Type	Wooden case
Warranty	2 Years
Welding materials	jewellry welding

Samples:
Product advantages: The laser welding machine adopts 100-300 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser. Applicable Fields & Materials: The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on. *Handcraft industry. Plywood, Glass, Marble, Density board, Gifts, Trophy, Marks, Key chains. *Furniture, Wood, Bamboo, MDF, Home textile, Seat Cushions, Ceramic. *Advertising industry, Advertising plate, Acrylic, Plastic, PVC, Signs. *Garment, Jeans, Leather, Chemical leather, Shoes material. *Decoration, Paper Board, Organic glass, Vases,Derma. *Model manufacturing.
