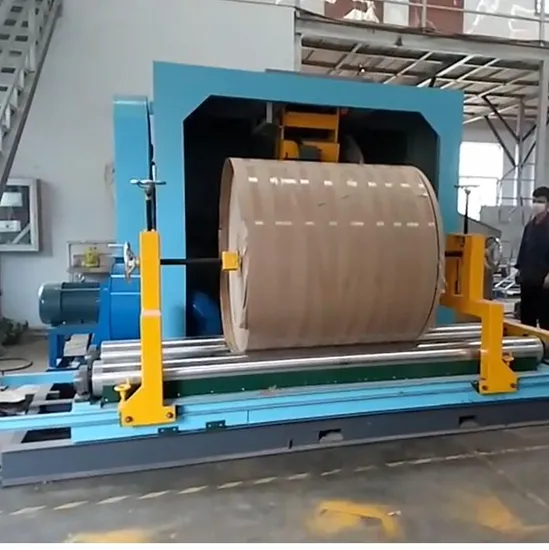

Kraft Paper Roll Cutting Machine

Product Description

Kraft Paper Roll Cutting Machine
Product Description
Introduction:
HUATAO brand automatic reel slitting machine can cut different-width paper rolls and provide on-site roll paper-cutting processing services. It is widely used in paper mills, packaging, and printing factory for cutting paper rolls which are soaked, wormed, bigger or special specifications according to customer demands, also including kraft paper, corrugated paper, white card, etc.

Product Parameters

Paper width	paper width 2500mm
Paper diameter	Paper diameter 1350mm
Voltage	380V
Frequency	50HZ
Total power	38KW
Main Motor's power	22KW
Cutter blade Speed	740R/min
Weight	3.75tons

Our Advantages
Advantage:
1. There is no need to consider the trouble of controlling the rewinding speed by the force of the original paper, directly slitting, no need to rewind the paper.
2. Reduce the loss of base paper. The normal cutting loss of base paper with a diameter of 1m to 1.3m is 10-15kg per knife, but if the technology is not good for rewinding, the loss will be less than 50kg.
3. Reduce the trimming loss of rewinding. After slitting, it can be directly put on the production line without trimming. It is inevitable that the rewinding machine will have uneven paper edges and wrinkles in the middle of the paper.
4. The slitting is fast, and the processing time for slitting to the required size is only 20% of the high-speed rewinder.
5. The cutting surface is smooth and flat, and the error is controlled within 2mm.
6. The processing range is wide, and the soaked paper that cannot be directly rewarded by the rewinding machine, the insect bite, and the sticky edge paper can be directly cut.
7. There will be no increase in the number of sections of the paper roll, and it is inevitable that the rewinder will be broken. The number of broken ends depends on the quality of the rewinder and the technical level of the operators.
8. One employee can operate.
9. Simple maintenance.
