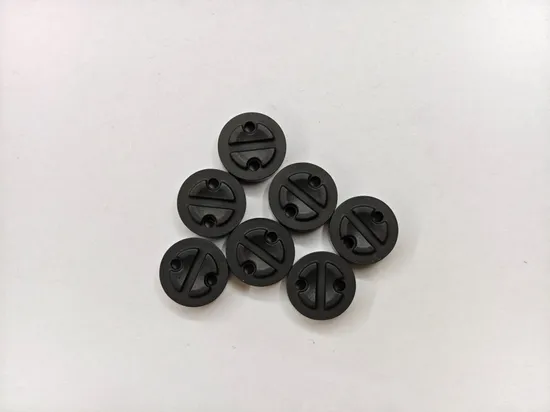

Rubber Bungs for Electrolytic Capacitor (4-25)

Rubber Bungs for Electrolytic Capacitor (4-25)

US$0.025-0.08 10,000 Pieces (MOQ)

Basic Info.

Model NO.
Rubber Bungs
Appearance
Rubber Bungs
Form
Emulsion
Diameter
4mm
Transport Package
Standard Export Carton
Specification
IIR EPT
Trademark
OEM
Origin
China
HS Code
4017002000
Production Capacity
500000

Product Description

Product Code φD H φG P φd1 φd2
4-102 3.35 ±0.05 1.80 ±0.05 0.90 ±0.05 1.60 ±0.1 3.0 -
4-109 3.35 ±0.05 1.90 ±0.05 0.90 ±0.05 1.60 ±0.1 3.0 -
4-101 3.35 ±0.05 2.20 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-104 3.56 ±0.05 2.45 ±0.1 0.90 ±0.05 1.60 ±0.1 3.15 -
4-105 3.35 ±0.05 2.50 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-108 3.35 ±0.05 2.50 ±0.1 0.95 ±0.05 1.60 ±0.1 3.0 -
4-111 3.35 ±0.05 2.55 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
4-112 3.40 ±0.05 2.50 ±0.1 0.90 ±0.05 1.60 ±0.1 3.0 -
5-105 4.35 ±0.05 1.80 ±0.05 0.90 ±0.05 2.10 ±0.1 4.0 -
5-125 4.35 ±0.05 1.90 ±0.05 0.90 ±0.05 2.10 ±0.1 4.0 -
5-120 4.35 ±0.05 2.50 ±0.1 0.90 ±0.05 2.05 ±0.1 4.0 -
5-101 4.35 ±0.05 2.60 ±0.1 0.90 ±0.05 2.05 ±0.1 4.0 -
5-102 4.35 ±0.05 2.60 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
5-122 4.35 ±0.05 3.00 ±0.1 1.10 ±0.05 2.10 ±0.1 4.0 -
5-116 4.40 ±0.05 3.00 ±0.1 1.10 ±0.05 2.10 ±0.1 4.0 -
5-104 4.35 ±0.05 3.30 ±0.1 1.10 ±0.05 2.00 ±0.1 4.0 -
5-111 4.35 ±0.05 3.50 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
5-121 4.40 ±0.05 3.50 ±0.1 1.10 ±0.05 2.05 ±0.1 4.0 -
6-110 5.30 ±0.05 1.90 ±0.05 0.90 ±0.05 2.60 ±0.1 4.9 2.6
6-112 5.30 ±0.05 2.50 ±0.1 0.90 ±0.05 2.60 ±0.1 4.9 2.6
6-111 5.30 ±0.05 2.50 ±0.1 1.10 ±0.05 2.60 ±0.1 4.9 2.6
6-101 5.30 ±0.05 3.00 ±0.1 1.10 ±0.05 2.60 ±0.1 4.9 2.6
6-108 5.35 ±0.05 3.50 ±0.1 1.10 ±0.05 2.55 ±0.1 4.9 2.6
6.3-111 5.65 ±0.05 1.80 ±0.05 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-102 5.65 ±0.05 2.20 ±0.1 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-112 5.65 ±0.05 2.60 ±0.1 0.90 ±0.05 2.60 ±0.1 5.15 2.6
6.3-101 5.65 ±0.05 2.60 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
6.3-116 5.65 ±0.05 2.60 ±0.1 1.05 ±0.05 2.60 ±0.1 5.15 2.6
6.3-103 5.65 ±0.05 3.00 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
6.3-109 5.65 ±0.05 3.50 ±0.1 1.10 ±0.05 2.60 ±0.1 5.15 2.6
8-156 7.35 ±0.05 1.80 ±0.05 0.90 ±0.05 3.80 ±0.1 6.8 3.0
8-117 7.30 ±0.05 1.80 ±0.05 0.90 ±0.05 3.60 ±0.1 6.8 3.0
8-108 7.30 ±0.05 1.80 ±0.05 0.90 ±0.05 2.50 ±0.1 6.8 3.0
8-152 7.30 ±0.05 2.00 ±0.05 0.85 ±0.05 3.50 ±0.1 6.8 3.0
8-153 7.30 ±0.05 2.00 ±0.05 0.85 ±0.05 2.65 ±0.1 6.8 3.0
8-126 7.30 ±0.05 2.10 ±0.1 0.90 ±0.05 3.60 ±0.1 6.8 3.0
8-140 7.30 ±0.05 2.20 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-119 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-132 7.30 ±0.05 2.60 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-136 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-138 7.30 ±0.05 2.60 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-149 7.30 ±0.05 2.60 ±0.1 1.05 ±0.05 3.70 ±0.1 6.8 3.0
8-151 7.30 ±0.05 2.60 ±0.1 1.05 ±0.05 2.70 ±0.1 6.8 3.0
8-150 7.30 ±0.05 3.00 ±0.1 1.05 ±0.05 3.70 ±0.1 6.8 3.0
8-139 7.30 ±0.05 3.00 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-102 7.35 ±0.05 3.00 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-103 7.30 ±0.05 3.00 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-107 7.30 ±0.05 3.00 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-118 7.30 ±0.05 3.00 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-106 7.30 ±0.05 3.10 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-115 7.35 ±0.05 3.50 ±0.1 1.10 ±0.05 3.50 ±0.1 6.8 3.0
8-125 7.30 ±0.05 3.50 ±0.1 1.10 ±0.05 3.80 ±0.1 6.8 3.0
8-109 7.25 ±0.05 3.50 ±0.1 1.40 ±0.05 3.60 ±0.1 6.8 3.0
8-113 7.35 ±0.05 3.50 ±0.1 1.40 ±0.05 3.50 ±0.1 6.8 3.0
8-116 7.30 ±0.05 3.50 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
8-142 7.30 ±0.05 3.50 ±0.1 1.10 ±0.05 2.70 ±0.1 6.8 3.0
8-124 7.30 ±0.05 4.00 ±0.1 1.40 ±0.05 3.80 ±0.1 6.8 3.0
10-117 9.30 ±0.1 2.50 (+0/-0.15) 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-114 9.30 ±0.1 3.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-109 9.30 ±0.1 3.50 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-118 9.30 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
10-121 9.30 ±0.1 4.00 ±0.1 1.40 ±0.05 5.10 ±0.1 8.8 3.3
10-108 9.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 8.8 3.3
12-106 11.20 ±0.1 3.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-105 11.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-104 11.25 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12-108 11.25 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 10.35 3.3
12.5-115 11.70 ±0.1 4.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.2 3.3
12.5-103 11.75 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-113 11.70 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-107 11.75 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-114 11.70 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-101 11.70 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.2 3.3
12.5-105 11.70 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.2 3.3
13-101 12.20 ±0.1 3.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-108 12.25 ±0.1 4.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-102 12.20 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-107 12.30 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 11.7 3.3
13-111 12.20 ±0.1 5.00 ±0.1 1.40 ±0.05 5.00 ±0.1 11.6 3.3
13-103 12.25 ±0.1 5.00 ±0.1 1.40 ±0.05 5.30 ±0.1 11.6 3.3
13-105 12.20 ±0.1 5.00 ±0.1 1.80 ±0.05 5.10 ±0.1 11.6 3.3
13-106 12.25 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 11.6 3.3
13-110 12.20 ±0.1 5.00 ±0.1 1.40 ±0.05 7.50 ±0.1 11.6 3.3
14-101 13.20 ±0.1 4.50 ±0.1 1.40 ±0.05 5.30 ±0.1 12.6 3.3
14-104 13.20 ±0.1 5.00 ±0.1 1.80 ±0.05 5.30 ±0.1 12.6 3.3
14-102 13.30 ±0.1 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 12.7 3.3
16-110 15.20 +0.05/-0.15 4.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-106 15.20 +0.05/-0.15 4.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-105 15.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.5 3.8
16-116 15.20 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-114 14.90 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 8.00 ±0.1 14.3 3.8
16-103 15.05 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.5 3.8
16-111 15.20 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16-102 15.20 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
16.5-101 15.70 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 14.6 3.8
18-112 17.10 +0.05/-0.15 4.50 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-107 17.10 +0.05/-0.15 5.00 ±0.1 1.70 ±0.05 7.80 ±0.1 16.5 4.8
18-104 17.30 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.7 4.8
18-114 17.10 +0.05/-0.15 5.00 ±0.1 2.30 ±0.05 8.00 ±0.1 16.5 4.8
18-116 17.25 +0.05/-0.15 5.00 ±0.1 1.75 ±0.05 7.80 ±0.1 16.5 4.8
18-108 17.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-115 17.10 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 10.00 ±0.1 16.5 4.8
18-102 17.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-110 17.10 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 7.80 ±0.1 16.5 4.8
18-101 17.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 10.00 ±0.1 16.5 4.8
18-103 17.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 16.5 4.8
18-118 17.25 +0.05/-0.15 6.00 (+0/-0.15) 1.75 ±0.05 7.80 ±0.1 16.5 4.8
19-104 17.60 +0.05/-0.15 5.00 ±0.1 1.70 ±0.05 7.80 ±0.1 17 4.8
19-106 18.20 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-108 18.20 +0.05/-0.15 5.50 ±0.1 2.30 ±0.05 8.00 ±0.1 17.5 4.8
19-101 18.10 +0.05/-0.15 5.50 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-103 18.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 17.5 4.8
19-102 18.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.00 ±0.1 17.5 4.8
19-105 18.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.00 ±0.1 17.5 4.8
19-107 18.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.50 ±0.1 17.5 4.8
20-104 19.10 +0.05/-0.15 5.00 ±0.1 1.80 ±0.05 10.50 ±0.1 18.6 5.8
20-101 19.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 7.80 ±0.1 18.6 5.8
20-105 19.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.50 ±0.1 18.6 5.8
20-106 19.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.30 ±0.1 18.5 5.8
22-101 21.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 7.80 ±0.1 20.4 5.8
22-103 21.10 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.00 ±0.1 20.5 5.8
22-104 21.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 10.50 ±0.1 20.4 5.8
22-105 21.00 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.50 ±0.1 20.4 5.8
22-106 21.10 +0.05/-0.15 6.50 ±0.1 2.30 ±0.05 10.50 ±0.1 20.5 5.8
22-107 21.00 +0.05/-0.15 6.80 ±0.1 1.75 ±0.05 10.00 ±0.1 20.4 5.8
25-102 24.10 +0.05/-0.15 6.00 ±0.1 1.80 ±0.05 10.00 ±0.1 23.5 6.8
25-103 24.00 +0.05/-0.15 6.00 ±0.1 2.30 ±0.05 12.50 ±0.1 23.4 6.8
25-101 24.00 +0.05/-0.15 6.50 ±0.1 1.80 ±0.05 12.50 ±0.1 23.4 6.8
