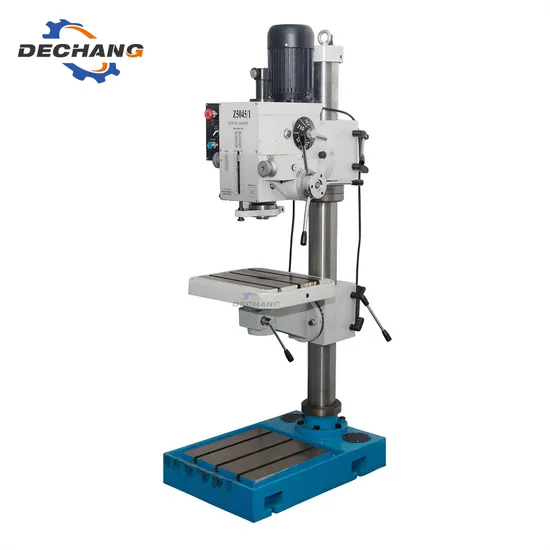

High Precision Cheap Vertical Drilling Machine Z5032/1 Vertical Round Column Driller Machine

Product Description

High Precision Cheap Vertical Drilling Machine Z5032/1 Vertical Round Column Driller Machine
Product Description
Main technical Specifications:

Specifications	Z5032/1	Z5040/1	Z5045/1
Max.drilling dia.	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min.distance from spindle axis to column	290mm	290mm	290mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Max travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliability	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/487kg	442kg/492kg	442kg/492kg
Packing size	1850×750×1000mm	1850×750×1000mm	1850×750×1000mm
