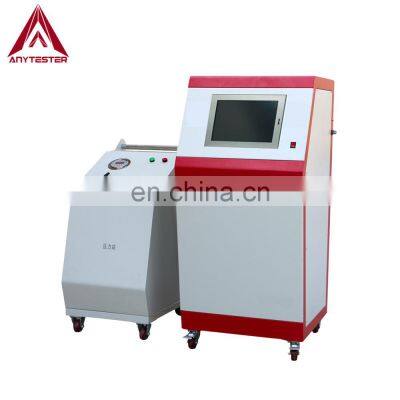

ASTM D1598 Pipe Hydrostatic Pressure Tester

Product Description

Product Description
Product Description
AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Standard

ASTM D1598, 1599	ASTM F1335	ISO 1167, 9080, 1756, 13477
GB/T 15560, 18252, 6111	CJ/T 108
Note: For more standards, please contact us

Specification

Model			AT470
Pipe diameter range			Φ10~Φ2000mm
Working position			6 positions (1~50 positions can be customized)
Operation mode			Operation panel/PC control
Pressure range			0.2~10MPa (or customized)
Pressure resolution			0.001MPa
Pressure control accuracy			-1%~+2%
Measuring range			5%~100% F.S.
Timing range			1s~10000h
Timing accuracy			±0.1%
Display resolution			1s
Min. Time setting unit			min
Temperature control system			RT-95℃  (15~95℃ with refrigerating system)
Temperature control accuracy			±0.5℃
Main body material			304# stainless steel
Power supply	Pressure control main machine	AC220V, 50Hz
		Pressure workstation	3phase, AC380V, 50Hz
		Constant temperature tank	3phase, AC380V, 50Hz

Details & Features
★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.
★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10
★ The dimension of test tank needed bases on the dimension of test pipes

MODEL	Dimensions (mm)					Power
	L	W	H	(kw)
110	750	450	700	6
160	1620	770	1305	9
250	1750	870	1675	9
400	2250	950	1450	12
630-710	2750	1370	1235	18
800-1000	3100	1670	1555	27
1200	3100	1950	1915	54

★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃
★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steel

Stainless steel end caps
End closures
Specification			D16~D1600
Structure			Pan structure
Sealing ring			O-ring
Conversion connector			PT1/4, internal thread, stainless steel material
End closures connector			M12*1.25, internal thread
Pressure range	D16~D110mm	0~10MPa (20MPa max. For D16/20/25 )
	Φ125~Φ630mm	0~5MPa
Material			Stainless steel

★ One microcomputer control one working position, it can separately set and control pressure, accuracy, time and other parameters while the computer does not work. Real-time display pressure, time and status (8 statuses: pressure rise, pressure compensate, pressure release, over- pressure, run, test over, leakage, burst) and also store these test data. It is also equipped with sound and light alarm when over-pressure, test over, leakage or burst happens ★ Imported (Germany) pressure control electric valve, two pieces for each working position, high accuracy
★ Imported (USA) water pressure station, excellent performance, long service life, low noise, no need to use air source
★ Adopt high precision sensor, the control accuracy can reach ±0.01MPa of set value
★ Can observe, analyze, check, store and print test curve (pressure-time), start time, set time, current time, effective time, ineffective time, remaining time, over-pressure time, pressure compensation time, etc.
