SD IPTV Ott Headend Digital TV Encoder HD H264 to Ethernet IP Video Live Streaming One Stop Solution

Product Description

Product Overview

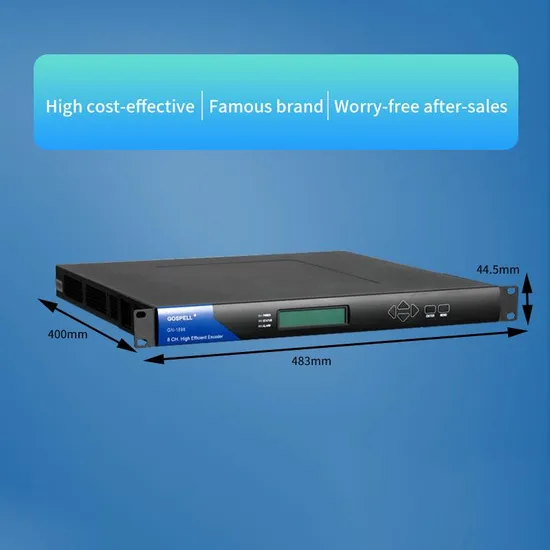

GN-1898 is the latest MPEG-2/MPGE-4 AVC high efficiency SD encoder.
It can perform SD MPEG-2/MPEG-4 AVC compression encoding of up to eight channels of analogue or digital A/V input signals simultaneously.

Then output the signals through IP interface after multiplexing.
This unit can be used for A/V signal source encoding of a DTV network head-end system, and it also supports WEB/SNMP management.

Main Features

l Up to eight channels of MPEG-2/MPEG-4 AVC SD encoding in 1RU;
l MPEG-1 Layer II or AAC(license option) audio encoding;
l Up to eight channels of analog composite video and unbalanced audio pairs inputs or digital SDI video with embedded stereo audio inputs;
l High picture quality in ultra low bit rate to reduce network overheads or costs;
l Web browser GUI and SNMP interface for remote management and control;
l MPEG TS-over-IP (7 x 188 Byte) output, supporting MPTS/SPTS mode
l Supports single IP output
l MPEG-2 encoding rate range from 0.5 to 5.5Mbps each video
l MPEG-4 AVC encoding rate range from 0.25Mbps to 5.5Mbps each video
l Supports multiple PAL and NTSC standard definition video encoding resolutions
l VBR/CBR video encoding
l Supports simple TS multiplex with auto-generated PSI/SI
l Low power consumption
l Front panel control and LCD display


Technical Specifications
Company Profiles
Gospell was awarded "National Electronic Information Industry Model Enterprise" in 2013, and identified as "Famous Trademark" in 2014, also awarded "Hunan Province Governor Quality Award" in 2014, gained "Quality Credit Rating Certificate AAA" in 2015.
"High-frequency Microwave Copper-clad Plate Industry Model Enterprise" in 2015, "Beijing Science and Technology Award" in 2016, Gospell has a much higher brand influence in domestic and foreign markets.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.
