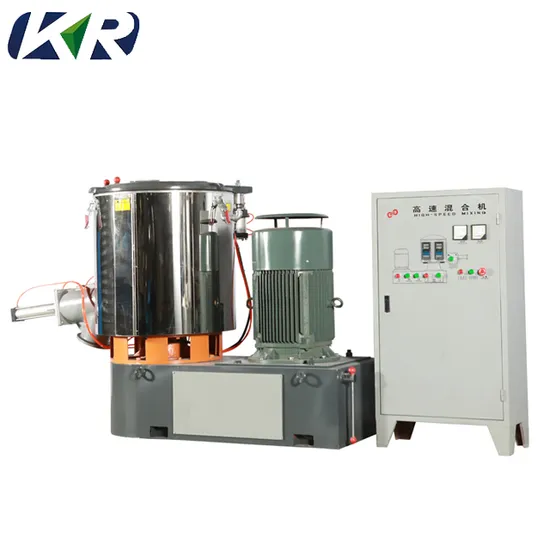

Plastic Material Granules High Speed Plastic Mixer Machine for Mixing

Product Description

Model	Total volume	Effective volume	Power of electrical machinery and heating	Principal axis rotary speed	Figure dimension (L*W*H)mm	Heating mode	Discharging mode
SHR-5A	5L	3L	1.1KW	1400rpm	620*300*730	self-frictiom	hand work
SHR-10A	10L	7L	3KW	2000rpm	1200*300*830
SHR-25A	25L	20L	5.5KW	1440rpm	1200*350*850
SHR-50A	50L	35L	7/11/3KW	750/1500rpm	2100*700*1100	electric or steam	peneumatics
SHR-100A	100L	75L	14/22/6KW	650/1300rpm	2100*800*1510
SHR-200A	200L	150L	30/42/6KW	475/950rpm	2400*850*1580
SHR-300A	300L	225L	40/55/9KW	475/950rpm	2000*1080*1680
SHR-500A	500L	375L	47/67/12KW	430/860rpm	3060*1150*1880
SHR-800A	800L	600L	83/110/15KW	370/740rpm	3385*1380*2750
SHR-1000A	1000L	750L	110/160/28KW	325/650rpm	3460*1140*2900	self-friction	peneumatics
SHR-200C	200L	150L	30/42KW	650/1300rpm	2545*900*1700
SHR-300C	300L	225L	47/67KW	475/950rpm	2000*1080*1680
SHR-500C	500L	375L	83/110KW	500/1000rpm	3060*1150*1880

Application & Features:
1. For plastics, rubber, daily chemical industry and laboratory materials mixing, stirring, dry blasting,
painting and other craft.
2. The pot cover has applied dual sealing.
3. self-friction, electric heating and various heating methods.
4. Discharge methods use automatic temperature control and manual control.
5. The blade is whole Stainless steel cast, and refined through the static and dynamic balance test.
FAQ
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
