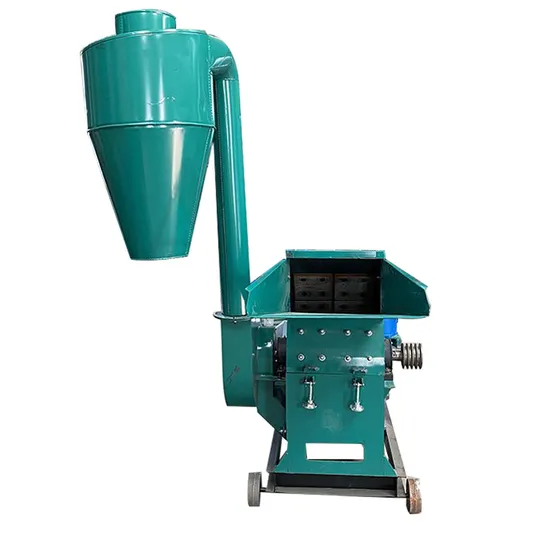

Electirc or Diesel Hammer Mill for Corn and Grain Corn Crusher

Product Description

Product Description
This grinding mill machine can crush corn, soybeans, bean cakes, straw, straw, peanut seedlings and sweet potato seedlings, etc. The inside of the machine is a hammer-type crushing bin, which can process straw, straw, soybean seedlings into rough feed, and grain into concentrated feed. The raw materials after the pulverizer are processed into pellet feed for livestock and poultry. This machine can also replace different crushing screens according to the different crushed materials of the user, and install the Shacron dust removal device according to the requirements. Manually only need to put the collecting belt at the discharge port of the Shacron. The materials can pass through the Shacron Discharging is convenient and labor-saving.
Product Parameters

MODEL	WS9FQ-280	WS9FQ-320	WS9FQ-350	WS9FQ-360	WS9FQ-400(With cyclone)	WS9FQ-420(with cyclone)	WS9FQ-500(with cyclone)	WS9FQ-1000(with cyclone)
Blade(PC)	16	16	16	16	16	24	24	32
Power (KW)	1.1	2.2	3	5.5	7.5	11	15	22
OUTPUT(KG/H)	100-150	300-500	500-700	700-900	1000-1200	1200-1500	1500-2000	5000-6000

Our Advantages
The casing is welded with high-quality materials, and the feeding port is on the top of the pulverizer, which can be matched with various feeding structures, and the hammers are symmetrically arranged. When the pulverizer is working, the material enters the crushing chamber, and is gradually crushed under the impact of the high-speed rotating hammer and the friction of the sieve plate, and is discharged through the bottom outlet under the action of centrifugal force and airflow.
Installation steps:
1. Before starting the machine, you must read the instruction manual carefully, and make adjustments and normal maintenance. 2. The supporting power must meet the requirements, and it is not allowed to increase the spindle speed without permission. 3. Before starting up, check whether the running direction is the same as the guillotine cutting direction, otherwise it is strictly forbidden to start up. 4. Hard objects such as metals and stones must not be mixed in the materials that need to be cut, otherwise the machine will be damaged.
5. After the machine has been running for several hours, it is necessary to observe whether the parts are loose, and the bearings must be regularly filled with butter.
