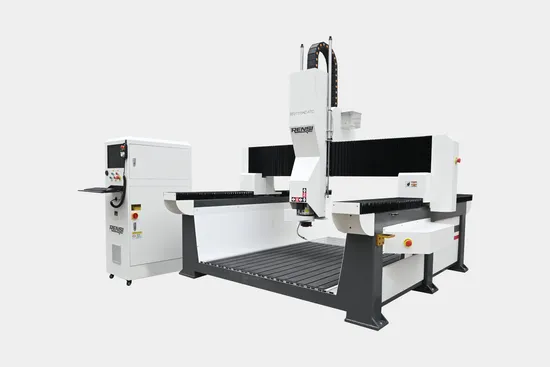

Customized Atc CNC Router Engraving Machine with Aggregate Tool for Styrofoam EPS Model

Product Description

Detailed Photos

MAIN PARTS
Taiwan CSK Linear Guide	Japan Shimpo Reducer
Angular head single	Angular head with 2 directions
Delta Servo Motor and Driver	HQD ATC spindle
Linear ATC with auto calibrator	Ncstudio Controller

Product Parameters

XYZ Travel Size	1300X1500X700mm
Max Working Size	1300X1500X600mm
Table Size	1300X1500mm
Transmission Type	XY rack/Z ball screw
Guide Rail	Linear Guide
Table Type	T slot table
Spindle Power	9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer	Linear Tool Changer with 4 tools
Spindle Speed	24000rpm
Max Travel Speed	45000mm/min
Max Work Speed	20000mm/min
Motor	AC servo motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio / Syntec / LNC
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	1800KG
Overall Dimension	2000X3600X1900mm

Product Description
Applicable industries and materials
Engineering decoration: Polystyrene Foam, plastic, artificial stone, etc
Main Fatures:
1. The feeding height is 600mm
2. Rectangular tube welding, cast iron column, steel gantry
3. T-profile steel countertop, aluminum profile countertop
4. The XY axis adopts high-precision helical rack and pinion, and the Z-axis adopts high-grade roller screw
5. Mixed servo motor and AC servo motor drive
6. Multi-power automatic tool change spindle is optional
7. Weihong, new generation and other systems are optional
8. Bucket hat type tool magazine and vertical row tool magazine are optional, and side milling heads can be installed
9. High Z-axis stroke design, sliding structure of lead screw and guide rail, effectively improve the stability of high stroke movement of the machine tool.
