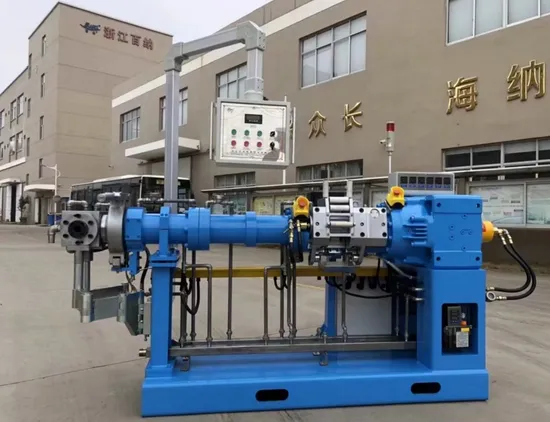

Silicon Machine / 50-12D Cold Feed Silicone Rubber Extruder /EPDM Seal Extrusion Machine
| US$42,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XJW-50mm 12D
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Type
Rubber Extruder
Model Number
Bn75-01-00
Screw Diameter
75mm
Color
Based on Customer Demand
Dimension(L*W*H)
2500*1000*1520mm
Weight
1200kgs
Power
55kw
L/D
20:1
Vacuum System
Yes
Screw Speed
2-55
Gear Reducer
18.5:1
Capacity
300kg/Hour
Place of Origin
Zhejiang, China (Mainland)
Warranty
2 Years
After-Sales Service
Provided: Engineers Available to Service Machinery
Transport Package
Wooden Pallet
Specification
75mm
Trademark
ZHEJIANG BAINA
Origin
Zhejiang
HS Code
8477209000
Production Capacity
10 Set/Sets Per Month
Product Description
Various types of basic parameters:
| Item | Diameter of screw(mm) | L/D ratio | speed of screw(r/min) | Driving power(kw) | Max output of production (kg/h) | Weight(kg) |
| 150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
| 120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
| 90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
| 75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
(1) Rubber single wall hose, rubber composite hose
(2) Rubber braiding hose, rubber knitting hose
(3) Rubber profiled strip
(4) Door & window sealing strips, used for car, ship, plane, railway and home decoration
(5) Rubber profiles with metal inserts
(6) Household appliances sealing strips, used for refrigerator, oven
(7) Foam hose, foam strip
(8) Rubber profiles for construction
(9) Rubber roller coated
(10)Automobile tires, motorcycle tires
(11)Automatic lift rubber handrail
(12)Rubber sheet
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.
Welcome to visiting our factory!
Zhejiang Baina Rubber&Plastic Equipment Co.LTD
More detail please contact Cady chen freely:
