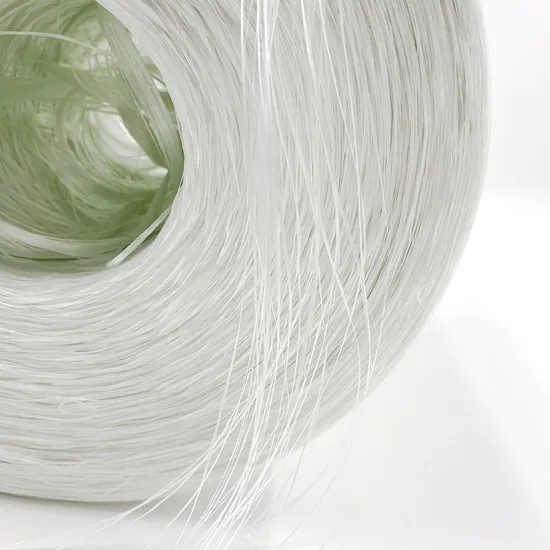

2400tex Glass Fiber Assembled Roving Fiberglass Roving Yarn for Spray up Insulation

Product Description

Product Description E-Glass Assembled Roving for Spray UpE-Glass fiber roving for spray up is made by multi stranded roving, which is mainly used for reinforcing UP and VE. it has good dispersibility, low static electricity, and good resin permeability.
Spray Molding Process: The glass fiber is sprayed onto the surface of the mold with the resin by using a spraying machine, and then cured through the process of removing the bubbles. Product Feature
Good cutability, reducing static electricity during high-speed cutting.
High bunching rate, ensuring efficient dispersion of untwisted roving into raw silk after cutting.
Excellent mold-covering property, reaching all corners of the mold.
Fast resin penetration, easy rolling and air bubble removal.
Uniform roving density and good annealing performance, suitable for various spray guns and fiber delivery systems. Product Parameters

Item	Linear Density	Resin Compatibility	Features	End Use
BHSU-01A	2400, 4800	UP, VE	fast wet out, easy roll-out, optimum dispersion	bathtub, supporting components
BHSU-02A	2400, 4800	UP, VE	easy roll-out, no spring-back	bathroom equipment, yacht components
BHSU-03A	2400, 4800	UP, VE, PU	fast wet out, excellent mechanical and water resistance property	bathtub, FRP boat hull
BHSU-04A	2400, 4800	UP, VE	moderate wet out speed	swimming pool, bathtub

Identification
Type of Glass	E
Assembled Roving	R
Filament Diameter, μm	11, 12, 13
Linear Density, tex	2400, 3000

Technical Parameters
Linear Density (%)	Moisture Content (%)	Size Content (%)	Stiffness (mm)
ISO 1889	ISO 3344	ISO 1887	ISO 3375
±5	≤0.10	1.05±0.15	135±20

Application
1. Construction field: bathtubs, fiberglass hulls, etc. 2. Infrastructure field: various pipes, storage tanks, cooling towers, etc. 3. Automobile field: various automobile parts, etc.
Packaging & Shipping Storage When it comes to storing our fiberglass products, we recommend a dry, cool, and rain-proof area. To ensure the best results, maintain a room temperature between 15ºC and 35ºC, with humidity levels ranging from 35% to 65%. Safety is our priority, so please avoid stacking the pallets more than three layers high. If you do stack them in 2 or 3 layers, make sure to move the top pallet with care and precision.
Remember, it's important to transfer the product to your workshop at least 24 hours before use for proper conditioning.
Packaging Our Fiberglass Woven Roving for Spray up Insulation can be conveniently packed on pallets or in small cardboard boxes. We offer flexibility to suit your specific needs.

Package height mm(in)	260(10)	260(10)
Package inside diameter mm(in)	160(6.3)	160(6.3)
Package outside diameter mm(in)	270(10.6)	310(12.2)
Package weight kg (lb)	15.6(34.4)	22(48.5)

Number of layers	3	4	3	4
Number of doffs per layer	16		12
Number of doffs per pallet	48	64	36	48
Net weight per pallet kg (lb)	750(1653.4)	1000(2204.6)	792(1764)	1056(2328)

Pallet length mm (in)	1120(44)		1270(50)
Pallet width mm (in)	1120(44)		960(37.8)
Pallet height mm (in)	940(37)	1180(45)	940(37)	1180(46.5)
