Metal Multifunctional Drilling and Milling Machine Zx6332 High Quality Cheaper Price Milling and Drilling Machine
| US$4,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6332
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
Used
Product Name
Metal Multifunctional Drilling and Milling Machine
Max. Drilling Dia.(mm
50
Max. End Milling Width(mm
100
Max. Vertical Milling Dia.(mm)
25
Max.Boring Dia.(mm)
120
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459590000
Packaging & Delivery
Package Size
171.00cm * 172.00cm * 233.00cm
Package Gross Weight
1950.000kg
Product Description

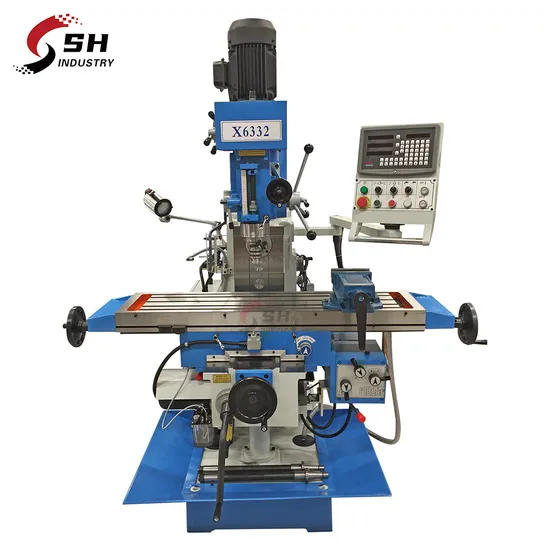

Metal Multifunctional Drilling and Milling Machine ZX6332 High quality cheaper price milling and drilling machineProduct Description
Main technical specifications:
| Specifications(mm) | ZX6332 |
| Max. drilling dia.(mm) | 50 |
| Max. end milling width(mm) | 100 |
| Max. vertical milling dia.(mm) | 25 |
| Max.boring dia.(mm) | 120 |
| Max. tapping dia.(mm) | M16 |
| Distance from spindle nose to table surface(mm) | 100-480 |
| Spindle taper | ISO40 |
| Spindle speed range(r.p.m) | 115-1750(V) 40-1300(H) |
| Spindle travel(mm) | 120 |
| Table size(mm) | 1500x320 |
| Table travel(mm) | 800x320x450 Opt.1000x320x450 |
| Table feed speed(mm/min) | X/Y:22-555 Z:300 |
| Overall dimensions (mm) | 1710x1720x2330 |
| Spindle motor power (kw) | 1.5/2.2(V) 3(H) |
| Machine weight (kg) | 1950/2050 |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
