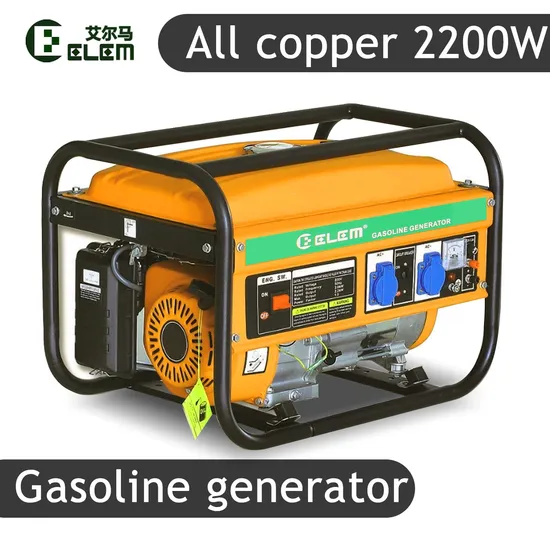

Taizhou Elem 2.0kw 2.2kw 2.5kVA 220V All Copper 168f Power Gasoline Generator
Basic Info.
Model NO.
2.0KW 220V All Copper
Output Type
AC Single Phase
Starting
Hand Start
Phase
Single-Phase
Power
＜5kW
Standard
Standard
Rated Power
2000W
Maximum Power
2200W
Weight
36kg
Voltage
220V
Engine
168f-1
Continuous Operation
13h
Frequency
50Hz/60Hz
Starting Mode
Manual
Oil Capacity
0.6L
Fuel Tank
15L
Transport Package
Carton or Wooden Case
Specification
61*44*45
Trademark
ELEM
Origin
Made in China
HS Code
8502200000
Production Capacity
25413
Packaging & Delivery
Package Size
61.00cm * 44.00cm * 45.00cm
Package Gross Weight
36.000kg
Product Description
1. Open the dipstick and add four-stroke oil
2. Add oil between L and H
3. Open the petrol cap and add No. 92 petrol
4. Observe the gasoline capacity through the fuel gauge
5.Press down to open the oil switch
6.Left break to close the damper
7.Open kill switch
8.Open the breaker
9.Pull the handle of the disc and pull it short and then pull it long and fast
10.Press the damper to the right after startup
| Technical parameter |
| Rated power | 900W | 2000KW | 2500W | 2800W | 5000W | 6000W | 7000W | 8000W |
| Maximum power | 1000W | 2200W | 2700W | 3000W | 5500W | 6500W | 7500W | 8500W |
| Dimension | 48*37*39 | 61*44*45 | 61*44*45 | 61*44*45 | 72*54*60 | 72*54*60 | 72*54*60 | 72*54*60 |
| Engine | 156F | 168F-1 | 170F | 170F | 188F | 190F | 192F | 192F |
| Continuous operation | 6H | 13H | 14H | 12H | 9H | 8H | 8H | 8H |
| Weight | 28KG | 36KG | 44KG | 50KG | 82KG | 83KG | 87KG | 90KG |
| Type stroke | Single cylinder/four stroke/forced air cooled gasoline engine |
| Voltage | 220V | 110V/220V/380V |
| Frequency | 50Hz | 50Hz/60Hz |
| Starting mode | Manual | Electric/Manual |
| Fuel tank | 6L | 15L | 25L |
| Oil capacity | 0.6L | 1.1L |
Matters needing attention
1.Order attention to style, fuel tank color, tray color, frame color
2.Optionally equipped with wheels and handles
3.Less than 50 sets pay full payment starting, more than 50 sets pay 30% deposit before delivery 70%
4.The default is carton delivery, large quantities can be customized wooden cases
