China Cheap Price Home Garden Farm Use Rubber Skid Steer Loader Big Power 23HP Ht380t Mini Front Loader

Product Description

China powerful 23hp mini skid steer loader home garden use HT380T small loaders for sale
The features of HT380T rubber track/Crawler type Mini skid steer loader
1. Two handles to achieve operation of working, lifting and dumping.
2. 4 wheels drive, suitable for various environment.
3. Safe pedal, stand operating way.
4.360°pivot steering. Save space, Flexible and operating easily.
5.Compact design can for any small space working.
6. Quick hitch system makes fastening attachments quickly and easily.
7.A loader serves several functions. HT380T can with various attachment for different working need. Quick hitch system, attachments can be changed quickly and easily.
8.Compare with same kind of products, HT380T mini loader is with higher lifting height.
The specification of HT380T Rubber track /Crawler type Mini skid steer loader :

Specification of HT380T Skid Steer Loader (Rubber track type)
Max working height	2120mm
Max pin height	1865 mm
Max Dumping height	1405 mm
Max Dumping distance	575mm
Max Dumping Angle	37°
Total height	1350 mm
Ground clearance	121 mm
Wheel base
Overall length without bucket	1495 mm
Total width	1021 mm
Bucket width	1150mm
Total length with bucket	2245 mm
overall length without the bucket after folding the pedal.	1990 mm
Engine	RATO R740-1
Rated Power (KW)	16Kw/3600rpm
Rotating speed (rpm)	3600
Noise (Db)	≤95
Hydraulic System
Pressure (Mpa)	0-17
Flow rate	0-21.6L
Operating Load	300 Kg
Bucket Capacity	0.15m³
Max Lifting Force	380 Kg
Travel Speed	0-4.5Km/h
Operating Weight	890 Kg

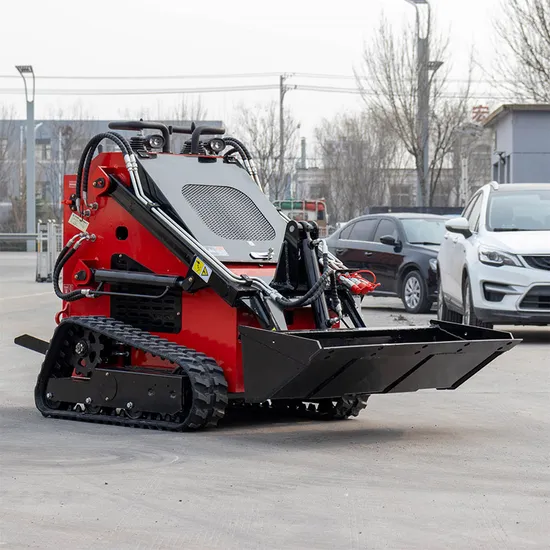

photos of HT380T rubber tracktype Mini skid steer loader:
our company:
SHANDONG HIGHTOP GROUP established in 1980, is an important and a large construction engineering
equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, include China Machinery
industrial Co.,ltd. company headquarters is located at Huoju Industrial Park, National High Tech Zone,Jining
City, Shandong province of China.
Contact Us: For more inforamtion, please send us inquiry or contact us!
Sales manager: Ms. Cassie Wang
