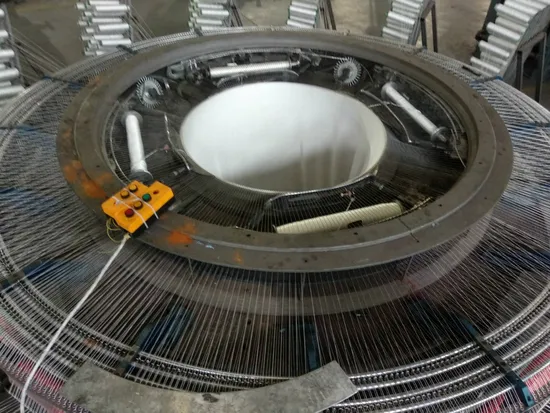

1000mm 40inch 1meter Diameter Circular Loom

Product Description

Size:20mm-1000mm,up to the size 1000mm after adding Accessories
Motor power:5.5kw
Outside size:Φ1800X950mm
Control power:24V DC
Brief Intrduction: FH300 circular loom is a kind of hose loom which optimized and developed on the Basis of introducing foreign similar-equipment and combing with our own Experience summarizing from long-term production practice as well.
The hose regulated speed by variable frequency. It is convenient and flexible for Operation, high reliable and high
Equipped with automatici stop control breakage of warpyarnandemptyweft
Bobbins and the indication lights show where the breakage have occurred or if the Weft bobbins are empty. This makes the products quality stable and reduces operators' work.
surface of the fabric is even andequal. Main technical parameters: Shuttle quantities: 3shuttles
Shuttle speed: appro. 80 rotations / min.
Available weaving diameter: 250mm, 300mm. and 350mm, 400mm can be Reached by Changing or adding some parts.
Available number of warp ends: 633 single ends or double ends.
Time of automatic stop: 2/3 rotation
