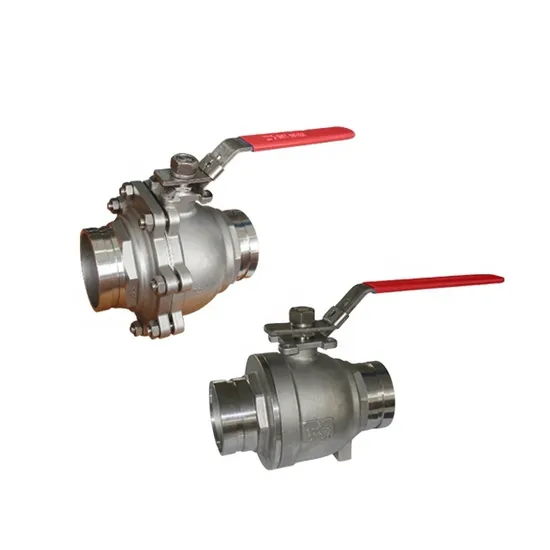

API598 CF8M Grooved End Reduced/Full Port 600/1000/2000PSI Oilfield Ball Valve

Product Description

Port: Full Port/Reduced PortSize: 2"FP, 2"RP, 3"FP, 3"RP, 4"RPPressure: 600PSI/1000PSI/2000PSI
Body: Stainless Steel
SEAT: RPTEF
BALL/STEM: SS316
Max Temp: 380ºF
Ends: Grooved endFeatures: Investment Casting Body
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle
Anti-Static Device
Pneumatic actuator Test Standard: API 598/API 607/NACE MR-0175
Design Standard:ASME B16.34&ASME B16.10

Iiem	Part name				Material
1	Body				CF8M
2	Cap				CF8M
3	Ball				ASTM 304SS
4	Seat				PTFE
5	Stem				ASTM 304SS
6	O-Ring				Buna-N
7	Thrust washer				PTFE
8	Packing				PTFE
9	Gland				304SS
10	Handle				201SS
11	Spring washer				201SS
12	Nut				A2-70
13	Locking Device				201SS

NPS	d	L	OD	C	A	B	W	H
2"	38	140	60.3	57.2	15.88	8.74	185	96
3"	63	176	88.9	84.9	15.88	8.74	265	137
4"	75	240	114.3	110	15.88	10	265	154
