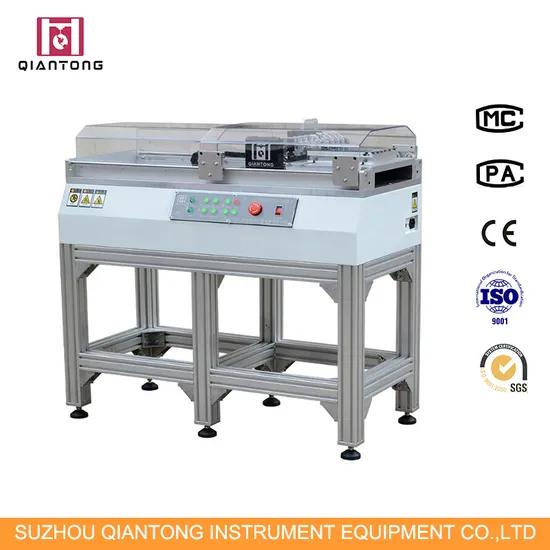

Solar Cell Module Tensile Peeling Universal Testing Machine/ Equipment (12BB)

Product Description

1. Qiantong main scope of testing machine Electronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)
2. Product Brief:adopts force,displacement and speed digital three closed-loop control system and Taiwan AC servo motor and control drive system. The tester is equipped with American high precision sensor and Taiwan high-precision ball screw mandrel to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Features:This machine adopts computer control. It has professional test program for data analysis and processing. It combines with high-resolution power acquisition sensor and high precision data processing chip, presents in the customer's intuitive performance curve and customer's requirements of the processed data value to more intuitive and accurate understanding of product performance, so as to improve product quality.
Advantages: test data can be displayed on the computer software at the same time with no error and convenient space operate mode save a lot of testing costs and labor costs for users in the solar PV industry is used for the solar energy industry battery 180 degrees peel strength test test the multi-grid battery test a single test station or two stations, data is not affected and ensure accuracy
About software functions: The software operation interface design is reasonable, concise and clear;Recipe editing and updating are more user-friendly; The test speed is adjustable between 0.05 and 3000mm/min; The machine can be operated by one person. Nine grid strips can be stretched at the same time, and a single battery can be tested in less than 4 minutes; Test software can generate test data automatically, and print in Word, Excel and PDF format; In the historical query, there are more than 400 query data records according to the query conditions, and there are separate databases to connect with other computers of the company.; The unit of stress can show N, N/mm; The real-time negative value caused by the reverse tension existing in the stripping process will be automatically shielded by the system and will not be displayed; The test results can show the peak, median, maximum, minimum, average, percentage of defect rate and percentage of welding points; Increase the calculation of interval tension mean, and the method of median is optional (integral calculation, point calculation); Excel derives the results and increases the judgment of selective tension effect(OK/NG); Increase the value of the tension interval. Each section takes a large interval with a certain value as the starting point, and extends to both sides with the center of the large interval as the center; The positioning is moved to the value range for median or average value; The software has a separate database that can hold multiple sets of data and view them on different computers.
3. Specifications

Type	QT-6201DS	QT-6201DS	QT-6201DA	QT-6201DW	QT-6201 DMX	QT-6201DAW	QT-6201 DAW
Form	Vertical	Horizontal	Horizontal	Horizontal	Horizontal	Vertical	Horizontal
Channel	5bb+1bb (double space)	1bb	5bb	6bb	9bb	9bb+1bb(double space)	12bb
Load capacity	50N					50N,2kN	50N
Precision level	0.5%
Test force resolution	1/±500000	1/±300000	1/±500000	1/±300000	1/±500000	1/±500000	1/±500000
displacement resolution	0.003mm	0.003mm	0.001mm	0.001mm	0.001mm	0.003mm	0.001mm
Speed mm/min	0.005-500	0.05-1000	0.05-3000	0.05-3000	0.05-3000	0.05-500	0.05-3000
Motor	Servo motor
Control method	Fully closed loop
Display method	PC software
Recovering speed	500 mm/min
Measurement range	0.2%-100%FS
Relative deviation	±0.5% within indication
Maximum stretch stroke	1100 mm	380mm				1100 mm	380mm
Effective stretching space	650 mm					650 mm
Effective testing width	420*420 mm	230mm				420*420 mm	230mm
Dimension mm	840*500*1650	1000*550*950				840*500*1650	1000*550*950
Power	220V 50Hz 0.4kW
Weight	180kg	120kg	140kg			180kg	140kg

4.Certificate of patent
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A:Yes. Our machines can be customized by client, include the color.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
Q:Can the machine be upgrade?
A:Yes, it can.
Q:Can the machine install a protective door?How much?
A:Yes, we can. About 368$(standard model with one protective door).
