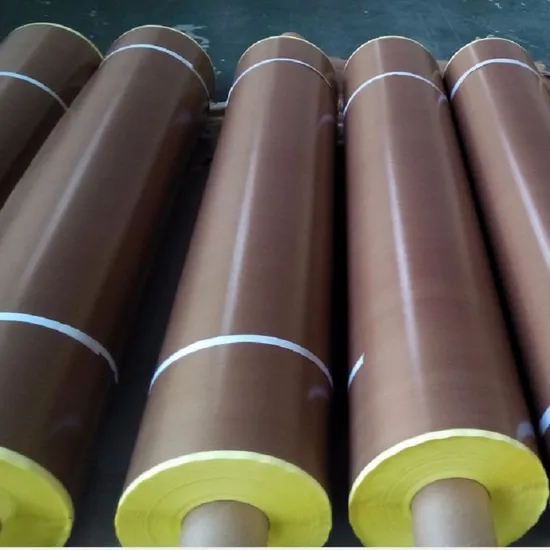

Thermal Insulation Material PTFE Coated Fiberglass Cloth
Basic Info.
Type
Adhesive Tape
Feature
High Temperature Resistance
Color
Browm/Black
Material
PTFE
Product Name
PTFE Coated Fiberglass Cloth
Base Material
Fiberglass Fabric
Temperature
-190ºC/+260ºC
Thickness
0.08-0.90mm
Max Width
1.25m
Weight
160-1650g/Sm
Coating
PTFE Coating
Good Features
Heat Resistant
Service
Supply Free Sample
Transport Package
by Package or Pallet
Specification
1m or 1.25m or customized
Trademark
Jiahe
Origin
China
HS Code
7019590000
Production Capacity
1000000 Squre Meter/Year
Product Description
Thermal Insulation Material PTFE Coated Fiberglass ClothProduct Description: Made from fiberglass yarn, weave it into different thickness and width of fiberglass fabric, impregnated with fine PTFE resin dispersion and dry it under 380ºC high temperature .
Performance:
high temperature resistance, its 24 hours temperature resistance is 260ºC,maximum up to more than 300ºC;non-stick surface, easy to clean; chemical resistance, anti corrosion,flame retardant.
Product Properties:
1.Non-stick
2.temperature resistance
3.low enlongation
4.anti-static
5.chemical resistance
| PTFE COATED GLASSFIBER FABRIC | ||||||
| Product | Color | Thickness | Weight | Tensile strength (warp/weft) | Max Width | Temperature |
| 9008AJ | Brown | 0.08mm | 160g/sq | 550/450N/5cm | 1250mm | -140/+260°C |
| 9008BJ | Black | 0.08mm | 165g/sq | 550/450N/5cm | 1250mm | -140/+260°C |
| 9013AJ | Brown | 0.13mm | 260g/sq | 1100/1000N/5cm | 1250mm | -140/+260°C |
| 9013BJ | Black | 0.13mm | 265g/sq | 1100/1000N/5cm | 1250mm | -140/+260°C |
| 9015AJ | Black | 0.15mm | 380g/sq | 1200/1100N/5cm | 1250mm | -140/+260°C |
| 9018AJ | Brown | 0.18mm | 380g/sq | 1800/1700N/5cm | 1250mm | -140/+260°C |
| 9025BJ | Black | 0.25mm | 540g/sq | 2100/1800N/5cm | 2800mm | -140/+260°C |
| 9030BJ | Brown | 0.30mm | 610g/sq | 2800/2400N/5cm | 2800mm | -140/+260°C |
| 9040BJ | Black | 0.40mm | 820g/sq | 3000/2500N/5cm | 3500mm | -140/+260°C |
| 9065AJ | Brown | 0.65mm | 1150g/sq | 4400/4000N/5cm | 4000mm | -140/+260°C |
| 9090AJ | Brown | 0.90mm | 1550g/sq | 6000/5000N/5cm | 4000mm | -140/+260°C |
| 9090BJ | Black | 0.90mm | 1650g/sq | 6000/5000N/5cm | 4000mm | -140/+260°C |
