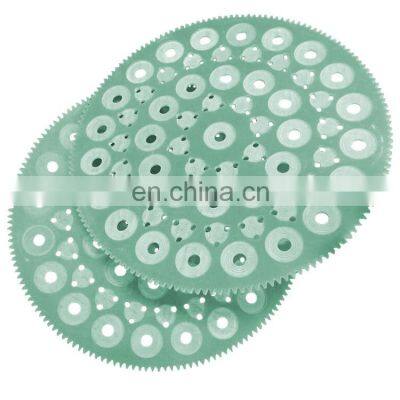

Fiber Glass Llaminated Epoxy 3240 FR4 G10 Machine Gasket

Product Description

Product Description
Product Description
Epoxy resin sheet is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant
(self-extinguishing).It has characteristics of high strength, excellent electrical properties and chemical resistance.
The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions.
These attributes, along with good Processing characteristics, lend utility to this grade for a wide variety of electrical and
mechanical applications.

Material	Epoxy resin + Glass fiber cloth
Size	1020x1220mm, 1220x2440mm or cutting
Thickness	0.3-135mm
Temperature resistance	≥130℃
Color	green，yellow，black
Warpage	0.3% mm
ODM	√

Product Advantage
1、Good flatness, smooth surface, no pits, standard thickness tolerances.
2、Low water absorption, good moisture resistance and good dielectric properties .
3、Stable electrical insulating properties, good electrical performance in dry or wet conditions.
4、High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
5、Good mechanical workability.
6、In high temperature electric performance is stable.
7、High mechanical properties and dielectric properties.
Product Application:
* Motor control, communication equipments
* Separator between the magnetic ring inductors and the base of the bottom
* Thermal power devices
* Also suitable for high voltage transformer and switch cabinet, high temperature, high-power welder even in wet environment
FAQ
1.For small orders, we will send the goods by Air Express to your door. This will only take 3-5 working days to reach your end.
2.For big orders, We will send you the goods by Sea to your close sea port.
This way will be very cheap and but it will take about
10-30 days,based on your location.
3.Normally, we will send the goods within 3-7 working days after your payment.
