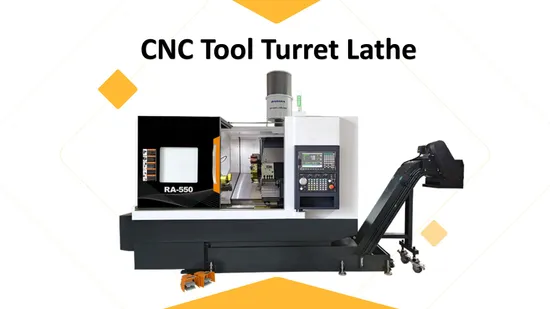

High Precision and High Rigidity CNC Power Turret Lathe Machine /CNC Slant Bed Turning Machine

Product Description

High Precision and High Rigidity CNC Power Turret Lathe Machine /CNC Slant Bed Turning Machine
Product Description

Processing Capability			Unit	RA-550
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ450
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	540
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	600
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	100-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	460
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

The CNC Turret Lathe from Dongguan Luotuo Industrial Co., Ltd is an indispensable powerhouse in the manufacturing industry. This advanced machine is expertly engineered for automotive parts, mechanical components, molds, shafts, wheels, and a plethora of metal parts. It shines in high-volume production, delivering unparalleled precision for complex shapes and diverse materials, significantly boosting enterprise competitiveness and productivity.
• High-Precision Machining: Our cutting-edge machine tool is crafted to adhere to the most rigorous machining precision standards. It seamlessly achieves extraordinary accuracy for ultra-fine cutting tasks, maintaining impeccable internal and external precision, roundness, and coaxiality with ease.
• Multiple Processes: Experience unparalleled versatility with our robust CNC Turret Lathe. It masterfully handles a wide range of complex and varied processing procedures, from radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, offering a comprehensive multi-process solution in one sophisticated machine.
• Clamping and Positioning the Workpiece:
The primary function of the gripper is to securely hold the workpiece in place, ensuring it remains fixed throughout the machining process for superior stability and precision.
By meticulously positioning the workpiece, the gripper ensures the precise alignment with the cutting tool, thus guaranteeing exceptional machining accuracy.
• Solving Special Clamping Problems:
For tasks involving the machining of holes, shafts, slots, and threads in non-standard parts like bushings and wheels, our specialized fixtures provide effective and custom-tailored solutions.
These specialized fixtures are expertly designed to meet specific machining requirements, effectively overcoming clamping challenges that conventional fixtures cannot address.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience superior processing conditions coupled with an advanced production environment that sets new industry benchmarks.
Our cutting-edge imported equipment, encompassing horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures unparalleled workpiece precision. This dramatically enhances assembly accuracy and extends the operational lifespan of our tools.
• State-of-the-Art Quality Detection Methods
Positioning accuracy is meticulously tested and calibrated with precision using sophisticated laser technology, adhering strictly to the German VDI3411 inspection standards (five comprehensive tests per standard).
Every machine tool undergoes exhaustive processing tests prior to dispatch, ensuring they not only comply with but surpass stringent processing accuracy standards.
Product sample
• Experience unparalleled efficiency with our Vertical CNC Drilling Machine Center, where advanced milling, drilling, and tapping functionalities converge seamlessly, setting a new standard in precision and productivity.
• Master the art of precision with our state-of-the-art CNC machine, meticulously engineered to handle a diverse range of materials including aluminum, steel, copper, and even non-metal profiles, ensuring immaculate results every time.
• Elevate your production capabilities across multiple industries with our versatile CNC machining solutions. Perfect for 3C electronics, rail transportation, aerospace, and linear module guide rails, our CNC machines are designed to meet the demanding standards of modern manufacturing.
Packaging & Shipping
•Highly Protective: Our packaging solutions are meticulously crafted to ensure that your Vertical CNC Drilling Machine Center remains safe and secure throughout its journey. Offering robust protection, our packaging effectively shields against any form of damage, guaranteeing the machine's pristine condition upon arrival.
•Structural Stability: Engineered with precision, our packaging is designed to maintain the machine's structural integrity during transit. This ensures that all components arrive in flawless condition, ready for immediate and efficient use, right out of the box.
•Environmentally Friendly and Recyclable: In our commitment to sustainability, we use packaging materials that are not only highly durable but also eco-friendly and fully recyclable. This conscious choice minimizes environmental impact, reflecting our dedication to preserving our planet for future generations.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.
