High Capacity Facial Tissue Paper Folding Machine Production Line

Product Description

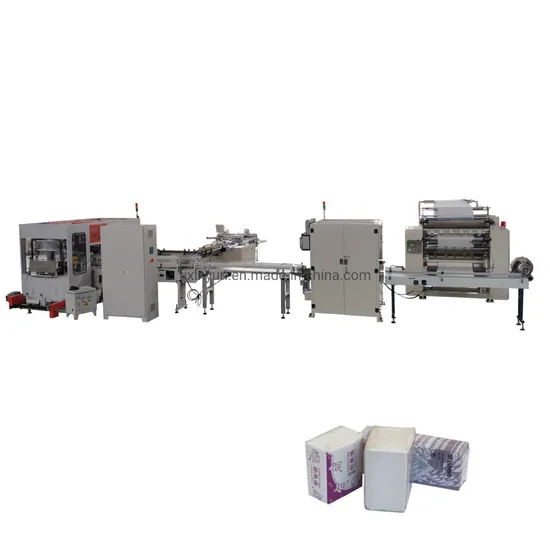

Product Overview XY-GU-A-B/D High capacity facial tissue paper folding machine production line Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine,single bag packing machine,semi automatic facial tissue bundle packing machine,automatic facial tissue carton box packing machine,automatic multi boxes facial tissue shrink packing machine and conveyor belt.
Machine working smoothly and stable from the raw material to finished products. This production line has high degree of automation, save labor costs, reduce labor intensity, is the best choice of the production of tissue products. VIDEO LINK: https://youtu.be/ZmkG6LafrRo
https://youtu.be/0_LB8DIu77s
Production specifications
XY-GU-20A Folding automatic counting facial tissue paper making machine
Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum adsorption principle and auxiliary manipulator folding.
Function and characteristics
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programming control, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the customers ).
8. It can make "V"type single layer towel and two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/Wv8AuNMVCVg

Machine Model	XY-GU-20A
Folded size of finished products	100*200±2mm
Unfold size of finished products	200*200±2mm
Diameter of raw material	1100mm
Diameter of raw material inner core	76.2mm
Daily Output (8 hours)	2000Kg
Embossing unit	Steel to steel
Slitting unit	Pneumatic slitting
Power	4.0KW Main motor
Vacuum suction unit	15KW Fan (Taiwan brand)
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Overall dimension	6000*2000*1850mm
Weight	3.0T

XY-GU-281 Automatic facial tissue paper cutting machine
Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid. VIDEO LINK: https://youtu.be/hSRYCsqJXCU

Machine Model	XY-GU-281
Cutting size scope	Height 20-120mm adjustable, width 80-120mm
Cutting length	Setting freely
Speed	80-100 cuts/min
Power supply	11KW 380V 50HZ three phase
Machine size	L1700*w1500*H2000mm
Weight	2800KG
Remark	We can desine it to be double channel cutting

XY-BT-298 Full-automatic Soft Facial TissueNapkin Paper Packing Machine
This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing. VIDEO LINK: https://youtu.be/oIzrKeMe5XU

Machine Model	XY-BT-298
Outline Dimension (mm)	3560*5885*1925
Speed (bags / min)	50-70 bags/min
Packing size (mm)	100-230*100-150*50-100
Power	15 Kw(380V 50Hz three phase)
Power Consumption (KW)	7.26

XY-GU-26B Low price facial tissue paper bundling packing machine
This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging. VIDEO LINK: https://youtu.be/q_H9E44o1PM

Machine Model	XY-GU-26B
Speed	10-15 bags/min
Packing dimension	135-190*90-100*60-80 mm( the width will be selected by customer)
Power	1.2 Kw 380V 50Hz
Air supply	0.6 Mpa (prepared by buyer)
Overall size	3900*1200*1500 mm
Weight of machine	600 Kg

XY-GU-388 Automatic facial tissue box packing machine
It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line. VIDEO LINK: https://youtu.be/Ak6TwhFdNIk

Machine model	XY-GU-388
Packing speed	50-80 boxes/minute
Packing material: Box requirement	300-450g/Square meter
Packing material: Size of box (L x W x H)	(100-230)mm X (30-120)mm X (20-90)mm
Air compressor: Air supply	0.5-0.8mpa
Air Comrpessor: Air consumption	180-210L/min
Power	5kw 220V 50HZ
Hot Melt Machine Power:	1.8kw
Machine noise	<70 dB
Overall dimension (L x W x H)	3400x1400x1700mm
Weight	2000kg

XY-TN-269 Automatic labelling maxi roll paper shrink tunnel packing machine
XY-TN-269 Automatic sealing and shrink wrapping machine series, are widely applied to the shrink package of maxi roll tissue, JRT jumbo roll toilet paper, carton box, foodstuff, beverage, pharmaceuticals,audiovisual products, hardware, cosmetics, books, toys, plastic, electronic components and so on.
VIDEO LINK:https://youtu.be/SbG3yEZHxhs

Machine Model	XY-TN-269
Power source	380V 50Hz three phase
Rated Power	11Kw
Sealing Size	450*220*120mm
Packing speed	10-20 bags/min
Packaging Size	450*220*120mm
Machine Size	L1600×W700×H1300mm
Weight	450KW

Workshop
Company profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing and Shipping
FAQ
Q: Are you trading company or manufacturer A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
