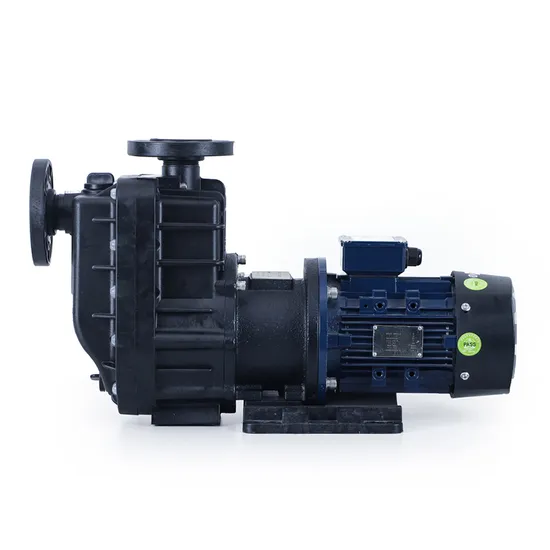

Electrical Chemical Acid Transfer Magnetic Drive Centrifugal Self Priming Pump
| US$450.00-1,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TXM
Max.Head
30-50m
Max.Capacity
>400 L/min
Driving Type
Magnetic
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Transport Package
Wooden Box
Specification
766 X 250 X 401mm
Trademark
Transcend
Origin
Dongguan
HS Code
8413709990
Production Capacity
20000PCS
Product Description
Electric Motor Chemical Transfer Magnetic Drive Centrifugal Self Priming Pump| Model No. | Inlet Dia. | Outlet Dia. | Power | Flow Rate(50Hz) | Head(50Hz) | Flow Rate(60Hz) | Head(60Hz) | N.W.(Kg) |
| TXM-1118 | 20mm | 20mm | 0.18kw | 55L/min. | 7.0m | 75L/min. | 9m | 11 |
| TXM-1125 | 20mm | 20mm | 0.25kw | 65L/min. | 7.5m | 85L/min. | 9.5m | 11 |
| TXM-220 | 25mm | 25mm | 0.37kw | 90L/min. | 13.5m | 100L/min. | 12.5m | 18 |
| TXM-221 | 25mm | 25mm | 0.75kw | 140L/min. | 16m | 155L/min. | 19m | 24 |
| TXM-222 | 25mm | 25mm | 1.5kw | 160L/min. | 18.5m | 170L/min. | 20m | 30 |
| TXM-441 | 40mm | 40mm | 0.75kw | 190L/min. | 17m | 200L/min. | 19m | 32 |
| TXM-442 | 40mm | 40mm | 1.5kw | 280L/min. | 18m | 310L/min. | 26m | 36 |
| TXM-443 | 40mm | 40mm | 2.2kw | - | - | 350L/min. | 27m | 39 |
| TXM-542 | 50mm | 50mm | 1.5kw | 240L/min. | 24m | - | - | 45 |
| TXM-543 | 50mm | 50mm | 2.2kw | 420L/min. | 25m | 415L/min. | 30m | 48 |
| TXM-545 | 50mm | 50mm | 3.7kw | 440L/min. | 27m | 520L/min. | 37m | 62 |
| TXM-552 | 50mm | 50mm | 1.5kw | 350L/min. | 24m | - | - | 45 |
| TXM-553 | 50mm | 50mm | 2.2kw | 430L/min. | 25m | 420L/min. | 30m | 48 |
| TXM-555 | 50mm | 50mm | 3.7kw | 445L/min. | 26m | 530L/min. | 35m | 62 |
