HS Laser 1500W Portable Handheld Fiber Laser Welding Machine for Welding Aluminum

Product Description

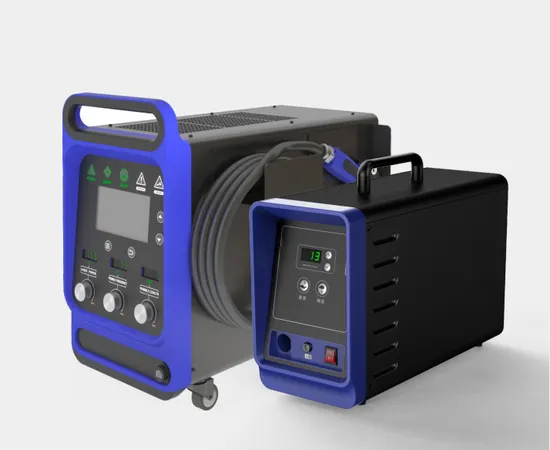

HS LASER 1500W 2000W 2500W 4000W portable laser welding machine with wire feeder
Based on the self-developed "small core diameter" laser technology, the HS HW Series handheld laser welders adopt a new dual circuit refrigerant direct cooling system and integrated structural design. These welders can provide customers with such experiences as high effectiveness, large penetration, high energy-efficiency, and high convenience. Because these welders can weld various metal materials, including aluminum, stainless steel, carbon steel, galvanized sheet, brass, etcthey find broad applications including welding building materials; welding materials used to make home electrical appliances, kitchen hardware and bathroom hardware; sheet metal processing and pipeline processing. The portable laser welding machine laser power come with 1500W 2000W 2500W 4000W which is power consumption is 3800W 4200W 5400W and 10500W,the laser gun and laser source integrated all in one connection that laser gun super easy to operate by everyone with shortly time. No need weld experience and no need hire professional weld people Product Parameters

Items	Unit	1500W / HS-HW1500	2000W / HS-HW2000	2500W / HS-HW2500	4000W / HS-HW4000
Rated input power supply	-	Single phase 220V			3 phase 380V
Input power frequency	Hz	50/60
Laser Power	W	1500	2000	2500	4000
Power consumption	W	3800	4200	5400	10500
Welding speed	cm/min	20-200			20-250
Cooling mode	-	Dual-circuit refrigerant direct cooling
Working temperature	ºC	-20~60			-30~60
Storage temperature	ºC	-40~85
Working humidity	%	0-90
Product dimensions	mm	675×310×580	673×310×605	673×310×605	863×410×724
Product weight	kg	45	55	65	80
Applicable wire diameter	mm	0.8/1.0/1.2/1.6/2.0
Output mode	-	Integrated armored cable+welding torch
Armored cable length	m	5/10/15/20(Customizable)
Welding mode	-	Spot welding/Continuous spot welding/ Pulse welding/Continuous welding

Detailed Photos
The image shows the parameter adjustment page of a laser machine. Here are the key parameters and their respective controls: 1.Laser Power
This is controlled by the knob on the left side. It likely adjusts the intensity or strength of the laser beam. 2.Wobble Frequency
Controlled by the middle knob, this parameter adjusts how quickly the laser wobbles or oscillates during operation. 3.Wobble Length
The knob on the right side controls the length or amplitude of the laser's wobble motion. Additionally, there are several icons at the top which might represent different modes or settings: 1.Emergency stop 2.Gas control 3.Interlock (safety feature) 4.Warning indicators 5.The screen in the center probably displays real-time information about the laser's status and settings. The image shows a part of a laser welding machine, specifically focusing on the control panel.
Here are the key elements visible in the picture: 1.External I/O Connector
This is a green terminal block labeled "EXTERNAL I/O". It is used for connecting external input/output devices to the machine.
This allows for integration with other systems or sensors that can provide signals to or receive signals from the laser welding machine. 2.Wire Feeder Port
To the right of the External I/O connector, there is a circular port labeled "WIRE FEEDER".
This is where the wire feeder unit would connect to supply filler wire during the welding process.
The wire feeder is an essential component in processes like MIG (Metal Inert Gas) welding, where a continuous wire is fed into the weld pool. 3.Grounding Symbol
On the far left, there is a grounding symbol indicating where the machine should be grounded for safety and proper operation. Grounding is crucial in electrical equipment to prevent electric shock and ensure safe operation. 4.Screws and Mounting Points
There are several screws and mounting points visible, which are used to secure the various components of the machine together. These features suggest that this is a sophisticated piece of equipment designed for precision welding tasks, likely used in industrial settings where high accuracy and reliability are required. The image shows a laser welding machine with a laser gun that has a wire feeder connection.
Here are the key components and their functions: 1.Laser Gun
This is the handheld device used to direct the laser beam onto the workpiece.
It typically includes a trigger mechanism for controlling the laser output. 2.Wire Feeder Connection
The wire feeder is connected to the laser gun, allowing it to feed a filler wire into the weld pool during the welding process.
This is particularly useful for adding material to the weld or for joining materials with different melting points. 3.Cables and Hoses
These connect the laser gun to the main unit of the laser welding machine.
They supply power, cooling water (if necessary), and control signals. 4.Cooling System
Some laser welding machines have integrated cooling systems to maintain optimal operating temperatures for both the laser and the workpiece. 5.Control Panel
Although not visible in this image, there is usually a control panel on the main unit where the operator can set parameters such as laser power,
pulse duration, and wire feed speed. 6.Safety Features
Laser welding machines often come with safety features like interlocks, warning lights, and protective covers to ensure safe operation. This setup allows for precise and high-quality welding, especially in applications requiring minimal heat input and high accuracy. This is a power supply for laser welding machine which come with 3 pin and easy to connect for back side of laser welder. Safety Features
Laser welding machines often come with safety features like interlocks, warning lights, and protective covers to ensure safe operation.
When the safety clamp device is not touch weld metal that there is no laser beam coming, before weld have to double check the safety clamp device whether connect weld metal.
The above picture shows the inside of the wire feeder. Certifications
