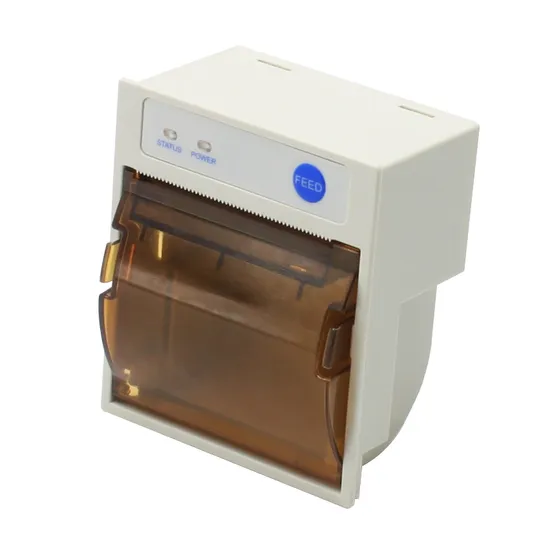

Cashino EC-50 Micro Panel Printer Embedded Thermal Receipt Printer for Printing Electrocardiogram
Basic Info.
Model NO.
EC-50
Supply Paper Mode
Manual
Network Function
Not Support Network
Style
Black and White
Character Structure
Full-width Characters Printers
Paper width
58mm
Installation port size
72*82.8mm(W*L)
Power
DC 5V/12V
Software development kit (SDK)
Yes
Warranty(Year)
1-Year
Effective Printing Width
48mm
Size
75*51.2*85.8mm(W*D*H)
Max. Resolution
203dpi(8 dots/mm)
After-sales Service
Return and Replacement
Paper Thickness
0.06-0.09mm
Paper type
Thermal Paper
Max Paper Size
50mm
Paper Roll Diameter
40mm Max
Black Print Speed
90mm/s(max)
Interface
RS232/TTL/USB
Transport Package
100sets/Carton
Specification
75*51.2*85.8mm(W*D*H)
Trademark
Cashino
Origin
Fujian, China
HS Code
84433214
Production Capacity
1000units/Month
Product Description
Product Display Product Parameters| Print method | Thermal line printing |
| Print speed | Max.90mm/s |
| Resolution | 203dpi(8dots/mm) |
| Effective printing width | 48mm |
| Feeding acuracy | 0.125 |
| Paper type | Thermal paper roll |
| Paper width | 50mm±0.5mm |
| Paper roll dia.(out/inner dia.) | Max.40mm / Min:9mm |
| Paper thickness | 0.06-0.09mm |
| Heating head temperature detection | Thermistor |
| Paper out detection | Photoelectric detection |
| Baudrate | 9600bps-115200bps |
| Interface | USB/RS232/TTL |
| TPH | 50km,1000000 cuts |
| Power supply | 12V/5V Average current 2A Peak current 4A |
| Dimensions(W*D*H) | 75*51.2*85.8mm |
| Installing size | 72*82.8mm |
| Color | creamy-white |
| Insert size | 42mm |
A1:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2.Sample time?
A2:Existing items: Within 1-2 days.
Q3.Whether you could make our brand on your products?
A3:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4.Whether you could make your products by our color?
A4:Yes, The color of products can be customized if you can meet our MOQ.
Q5.How to guarantee the quality of your products?
A5: 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
