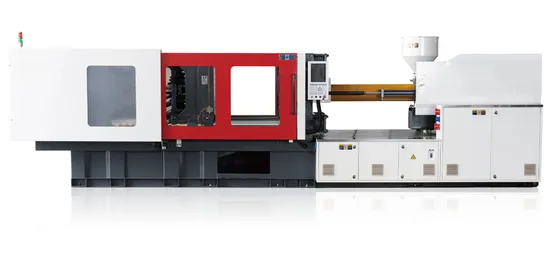

Hf-458t Thin-Wall Products High Speed Precision Injection Molding Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
HF-458T
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
500/Y
Product Description
K&E Machinery (Ningbo) Co., Ltd. presents the HF-458T High Speed Energy Saving Servo Injection Molding Machine. This high-quality machine is perfect for producing Thin-wall plastic products such as thin-wall box, fruit and vegetable baskets, and pet preforms. With its advanced technology and energy-saving features, it is an excellent choice for any injection molding needs.Parameters:
| SPECIFICATION | 458 | |
| Injection Unit | ||
| Screw diameter | mm | 60 |
| Screw L/D ratio | L/D | 25.8 |
| Shot volume(theoretical) | CM3 | 707 |
| Injection weight | g | 643 |
| Injection speed | mm/s | 461 |
| Injection rate | g/s | 1186 |
| Injection pressure | Bar | 153 |
| Screw speed | rpm | 0-350 |
| Clamping Unit | ||
| Clamping force | KN | 4580 |
| Open stroke | mm | 605 |
| Space between tie-bars(W*H) | mm | 680*680 |
| Max mould height | mm | 680 |
| Min mould height | mm | 270 |
| Ejector stroke | mm | 100 |
| Ejector force | KN | 80 |
| Others | ||
| System pressure | Mpa | 17 |
| Motor power servo | Kw | 55+55 |
| Heating power | Kw | 33 |
| Machine dimension(L*W*H) | M | 7.6*1.9*2.2 |
| Machine weight | Ton | 18.5 |
Product Description Introducing the HF-458T High Speed Energy Saving Servo High Quality Injection Molding Machine by K&E Machinery (Ningbo) Co., Ltd. This injection machine is perfect for producing THIN-WALL plastic products such as THIN-WALL BOX, fruit and vegetable baskets, and pet preforms. With its energy-saving servo technology, it ensures efficient and high-speed injection molding. The machine comes with a 12-month warranty and offers engineer installation and debugging services. Get this top-quality injection molding machine for your plastic production needs.
