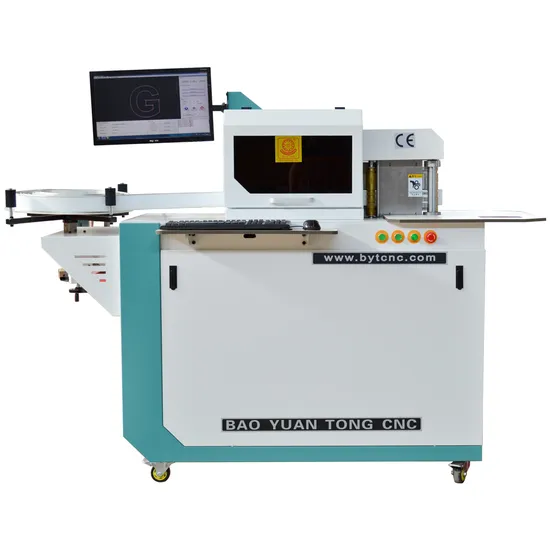

3D Sign Letter Making CNC Channel Letter Automatic Bending Machine

Product Description

Product Description
Full Automatic Signs Making Channel Letter Bender for flat Triangle folded edge aluminum coils
Product Description
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faste
Whole machine feature:
1.Whole machine guarantee 2 years , the motor guarantee 3 years
2. Processing material height 10-180mm, Thickness : Aluminum 0.3-1.5mm,
Suitable for most of Aluminum profile
3.All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
5. The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
Technical data:

Model	BWZ-B1
Function	Automatic feeding,slotting and bending
Applicable Material Alu=Aluminum	Flat Alu,Folding Alu,Channelume
Material Width	Flat Alu:≤180mm Folding Alu:≤160mm Channelume:70,90,110mm
Material Thickness	Aluminum:0.3~1.5mm
Bending Radius	7mm
Feeding	φ36mm feeding wheel+Guide material auxiliary+Encoder
Slotting System	Motor control
Bending	Coupled extrusion-Double copper shaft flat arc bender
Control System	ADT
Power	<1500W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	270
Overall Size(mm)(L*W*H)	2100*800*1530
