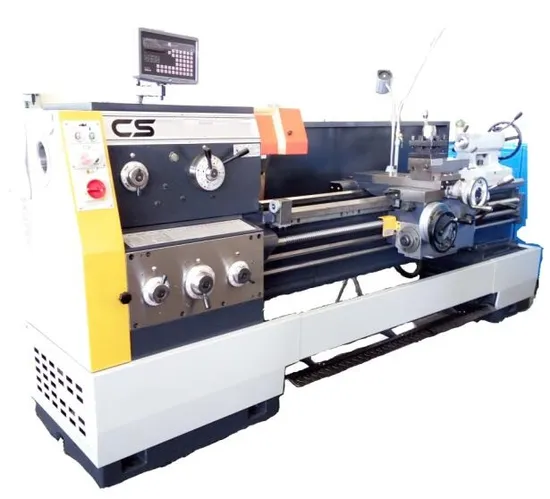

CS6140 400mm precision conventional lathe machine with ISO9001
Basic Info.
Model NO.
CS6140
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Statio Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
52mm
Max. Swing Over Bed
400mm
Distance Between Centers
750/1000mm
Machine
Lathe
Clour
Customer Appoint
Voltage
110V, 220V, 380V
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
100 Per Sets Monthly
Packaging & Delivery
Package Size
238.00cm * 97.00cm * 123.00cm
Package Gross Weight
2050.000kg
Product Description
FeaturePrecision ground and supersonic frequency
The spindle system is high in rigidity and accuracy
The noise of the machine is low
Main specification
| SPECIFICATIONS | CS6140 | CS6150 | |
| Capacity | Max. swing dia. over bed | Φ400mm(16") | Φ500mm(20") |
| Max. swing dia.in gap | Φ630mm(24-3/4") | Φ710mm(28") | |
| Max. swing dia. over slide | Φ220mm(8-3/4") | Φ300mm(12") | |
| Max. workpiece length | 750/1000/1500/2000/3000mm(30/40/60/80/120") | ||
| Spindle | Spindle bore diameter | Φ52mm(2") | Φ82mm(3") |
| Type of spindle nose | CS6140:ISO 702/III NO.6 bayonet lock | ||
| Spindle speed | 24 steps 9-1600rpm | ||
| Spindle motor power | 7.5kw | ||
| Tailstock | Diameter of quill | Φ75mm(3") | |
| Max. travel of quill | 150mm(6") | ||
| Taper of quill (Morse) | MT5 | ||
| Turret | Tool O.D. size | 25mm×25mm(1"×1") | |
| Feed | Max. X travel | 145mm(5-3/4") | |
| Max. Z travel | 320mm(13") | ||
| X feed range | 93 kinds 0.028-6.43mm/r | ||
| Z feed range | 93 kinds 0.012-2.73mm/r | ||
| Metric threads | 48 kinds 0.5-224mm | ||
| Inch threads | 48 kinds 72-1/4t.p.i | ||
| Module threads | 42 kinds 0.5-112 πmm | ||
| Diametric pitch threads | 42 kinds 56-1/4 t.p.i.π | ||
| Other | Cooling pump | 0.06kw | |
| Length | 2382/2632/3132/3632/4632mm | ||
| Width | 975mm | ||
| Height | 1230mm | ||
| Weight | 1795/2050kg | 2050/2100kg | |
| 2250/2450/2850kg | 2300/2500/2900kg | ||
Standard Accessories: - 3-jaws chuck 250 mm- follow rest 20-80mm- steadyy rest 20-120mm- center MT5- cone MT6/MT5- coolant supply- adjustable stop for Z Axis- galogen lamp- coolant shield- foot brake- grease gun
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Machines' Detailed Pics.
