6kw CNC Aluminum Plate Steel Metal Tube Fiber Laser Cutting Machine with "0" Tail
| US$20,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DXTECH TLA6160/TLA9160/TLA6220/TLA9220
Application
Agriculture Machinery, Automotive Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Avliable Cutting Material
Aluminum/Steel/Iron
Certification
CE
Laser Source Brand
Raycus
Moter
Servo
Lathe
The Lathe Bed Is Made of Cast Iron
Laser Head
Jia Qiang
Application Material
Metal Sheet Iron/CS/Ss/Aluminum/Copper
Key Selling Points
Multifuctional
Motor Speed
3000 Rpm
Marketing Type
Ordinary Product
Cutting Speed
0-60m/Min
Transport Package
Wooden Box
Specification
1500mm*3000mm
Trademark
DXTECH
Origin
Shandong, China
HS Code
8456110090
Production Capacity
100sets/Month
Product Description

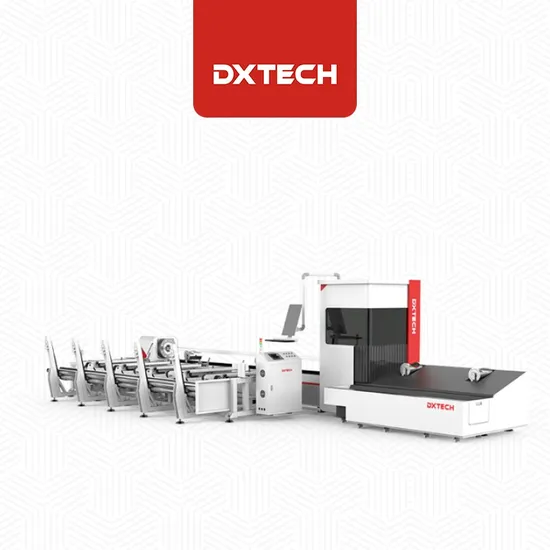

Product DescriptionDXTECH double chuck automatic loading and unloading pipe laser cutting machine is specially designed for cutting pipes in large quantities. It can quickly cut round, square, oval, rectangular, and other special-shaped pipes to meet different pipe-cutting requirements. The concentrated operation, flexible processing, automatic feeding, convenient and quick pneumatic chuck feeding, and no need for manual operation.
Features
1.Fully automatic without manual work
This model is a fully automatic feeding pipe laser cutting machine. The loading and unloading mechanism is added to the ordinary pipe laser cutting machine, which can realize the automatic cutting of batches of pipes without human intervention.
2.High-efficiency "0" tailings
The humanized design of the whole machine makes the best use of raw materials while improving cutting efficiency reducing production costs, and achieving "0" tailings.
3.Materials are widely used
It is suitable for cutting round pipes, square pipes, rectangular pipes, waste pipes, angle steel, channel steel, I-beam, and other special-shaped metal pipes. Processing method: pipe cutting
Product Parameters
| Model | DXTECH-TLA6160/TLA9160 | DXTECH-TLA6220/TLA9220 | DXTECH-TLA6350/TLA9350 |
| Max. tube length | 6.5m/9.2m | 6.5m/9.2m | 6.5m/9.2m |
| Laser Output Power | 1000W-4000W | 1000W-4000W | 1000W-4000W |
| Tube shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
| Max. tube weight | 100kg 16kg/m | 200kg 30kg/m | 500kg 83kg/m |
| Chuck | Two pneumatic chucks | Two pneumatic chucks | Two pneumatic chucks |
| Max. chuck rotating speed | 130r/min | 130r/min | 140r/min |
| Laser | Multiple options | Multiple options | Multiple options |
| Clamping range | Φ10-Φ160mm | Φ20-Φ220mm | Φ20-Φ350mm |
Cutting materials and thickness
| Carbon steel | 0.4-6mm | 0.4-10mm | 0.4-12mm | 0.4-14mm | 0.4-16mm | 0.4-20mm |
| Stainless steel | 0.4-3mm | 0.4-4mm | 0.4-5mm | 0.4-6mm | 0.4-8mm | 0.4-10mm |
| Aluminum | 0.4-2mm | 0.4-3mm | 0.4-3mm | 0.4-4mm | 0.4-6mm | 0.4-8mm |
| Brass | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-8mm | ||
| Laser power | 500w | 750w | 1000w | 1500w | 2000w | 3000w |
