Dia 1000 mm CNC Vertical Profile Form Gear Grinding Machine with Online Measuring System
| US$67,000.00-89,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
73100
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Delivery
5 Months
Funtion
Online Measuring System
Service
After-Sales Installation and Commissioning
Optional
Internal and External Gear Processing System
Transport Package
Export Box
Specification
standard
Trademark
GEEPRO
Origin
China
Production Capacity
300-500PCS/Year
Packaging & Delivery
Package Size
385.00cm * 225.00cm * 330.00cm
Package Gross Weight
18000.000kg
Product Description

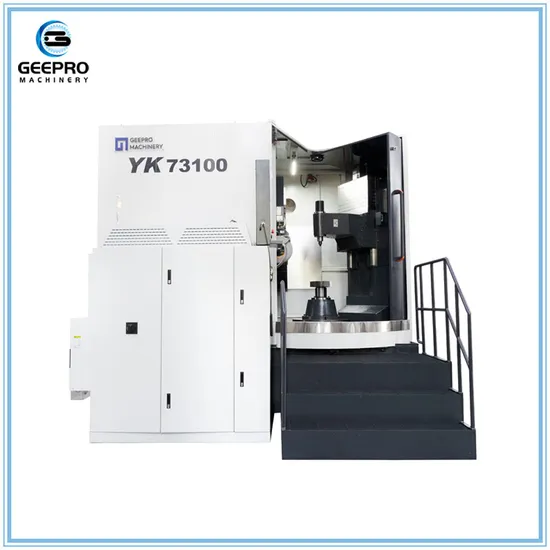

We are a professional gear equipment manufacturer, we have factories, mainly dealing with gear processing machines; or traders, agent of gear grinding machines, honing machines, grinding machines, lathes and other kinds of machine tools, to provide turnkey projects for customers in the machinery industry.| Machine Characteristics Δ 7 servo axes and 2 frequency-controlled axes. Δ It employs profile grinding principles to achieve gear grinding. The X and Y axes are driven by direct drive motors, offering the machine efficiency and high precision suitable for batch gear grinding operations. Δ The workpiece axis is driven by a torque motor with hydrostatic structure. Δ The grinding wheel spindle incorporates a built-in wireless dynamic balancing device. Δ The machine is equipped with software for internal and external gear processing. It can perform tooth shape and tooth direction correction. Δ The machine is fitted with a contact-type gear alignment and measurement device, capable of automatically aligning gears and measuring gear accuracy online, and it can print out reports. Δ A dedicated operation interface with menu-style input ensures simplicity and ease of operation. Δ Equipped with an external fire extinguisher. Δ Features triple section gear grinding capability. Δ Comes with material allowance distribution functionality. Δ Equipped with two internal grinding tools, one large and one small. |
| YK73100 The main technical parameters | |
| Workpiece Diameter mm | Outer Gear Outside Diameter: 100-1200 mm / Inner Gear Inside Diameter: 150-1100 mm |
| Workpiece Module | Outer Gear 2-26 / Inner Gear 2-15 |
| Workpiece Pressure Angle (using standard roller) | Any |
| Workpiece Tooth Width (max straight gear) | Outer Gear Tooth Width 650 mm / Inner Gear Tooth Width 350 mm |
| Maximum Workpiece Weight (including fixture) (Kg) | 5000 |
| Table Diameter (mm) | 750 |
| Spindle Diameter (mm) | 85 |
| Max Peripheral Speed of Grinding Wheel (m/s) | 50 |
| Max Radial Travel of Column (axis) (mm) | 750 |
| Max Tangential Displacement of Grinding Wheel (Y-axis) (mm) | 0-500 |
| Max Axial Displacement of Grinding Wheel (Z-axis) (mm) | 750 |
| Swivel Angle of Grinding Wheel Head (A-axis) | ±30° |
| Rated Power/Speed of Grinding Wheel Motor | 37kw/4000RPM |
| Total Power Supply (KVA) | 100 |
| Power of Grinding Wheel Spindle (KW) | 15 |
| Main Unit Dimensions | 3850x2250x3300 |
| Machine Height (mm) | 3270 |
| Machine Weight (T) | ≈18-22 |
equipment with online measuring system
gear skiving machine
gear grinding machine
gear hobbing machine
