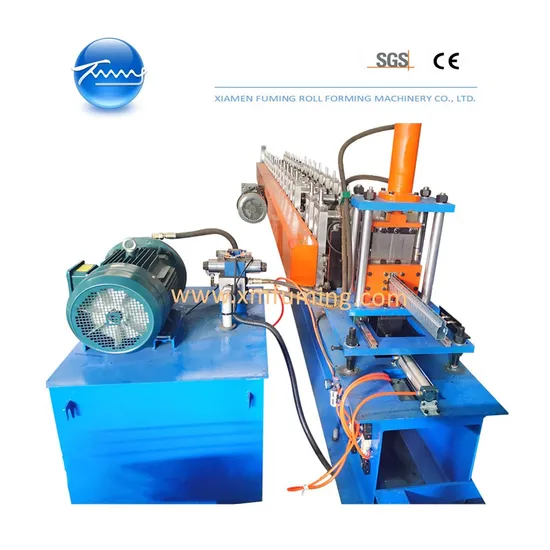

Roll Forming Machine for Yx72-33 Upright Profile

Roll Forming Machine for Yx72-33 Upright Profile

US$70,000.00-99,000.00 1 SET (MOQ)

Basic Info.

Model NO.
YX72-33 UPRIGHT
Customized
Customized
Thickness
0.9mm to 1.75mm
Yield Strength
235MPa
Transport Package
Container
Origin
Xiamen
HS Code
8455229090
Production Capacity
10sets/Month

Product Description

ROLL FORMING MACHINE FOR YX72-33 UPRIGHT PROFILE
Material Specification
Thickness 1.5mm to 2.0mm
Material GI, cold rolled steel
Yield strength 235MPa
Machine Components
1.5Ton*300mm Decoiler With Pre-leveller
Load capacity Max.1.5Tons
Coil inner-diameter 510±30mm
Coil outer-diameter Max.1200mm
Coil width Max.300mm
Inverter Delta
Pre-Level Device with 3 over 2 shafts to remove the Coil-set, Manual control
2 stages of rollers for feeding in
Pre-leveling shaft and feed-in roller 45# steel, CNC, hard chrome coated
Power for feeding-in 2.2KW
100 Tons Press
Servo motor feed-in device 5.5KW×2
Step length 300mm
Quantity of punching mould One set
Mateiral of punching mould Cr12Mov, heat treatment
Roll Forming Machine
Driving system Gear/Sprocket
Forming station 18 stages, with twist-adjusting device
Roller material Cr12, heat treatment, HRC58~62
Shafts Diameter Φ75mm
Motor 18.5KW, frequency inverter control
Production speed Approx. 18m/min
Water cooling system One set
Hydraulic PostCutting device
Cutting type Slug breaker
Cutting tool material Cr12, heat treatment
Hydraulci pump motor 11KW
PLC Control System
Function Control quantity, punching and cutting length automatically
PLC Siemens
Touch screen Siemens
Inverter Schneider or Delta
Encoder Omron
Cut-to-length tolerance ≤±1mm
Control Voltage 24V
Pneumatic unloading rack 10 meters lobg
