2024 Chinese Manufacturer Impact Specimen Notch Projector

Product Description

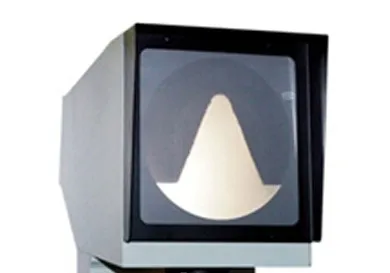

CST-50 Impact Specimen Notch Projector Name:Impact Specimen Notch Projector Model No.: CST-50 Instruction:The impact sample notch projector is designed and developed according to GB/T229-2007 "Metal Charpy Notch Impact Test Method" to meet the international standard ISO148, the requirements of the impact sample notch, and is professionally used to detect whether the impact test notch is qualified Important testing equipment, this instrument uses the principle of optical projection to compare the U-shaped and V-shaped notches of the tested impact sample with the standard plate diagram to determine whether the tested impact sample is qualified. The equipment is easy to operate, intuitive to check and efficient, and it is an indispensable testing equipment for the processing of impact samples. Specification:

Projection screen	200×200mm
Magnification	50X
V-notch	Depth: 2mm, width: 2mm
angle	45±1 degree
U-notch	Depth: 2mm, width: 2mm
light source	12V 100W (halogen lamp)
Sample stage adjustment	Front, back, left, right, up, down, 360°rotation
power supply	200V 50HZ 200W
Dimensions	515×224×603mm
weight	About 18kg

FAQ
1. Are you a manufacturer?
Yes, we are professional manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
