Cheap Torno CNC Vertical Turning Lathe Ck5120 Single Column Price

Product Description

Product Description

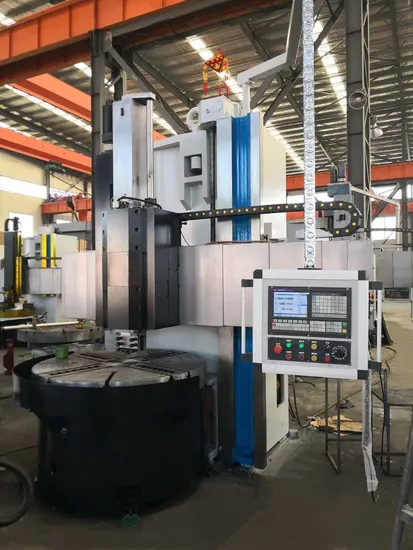

Cheap Torno CNC Vertical Turning Lathe CK5120 Single Column Price
CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy workpieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels nd sleeve workpieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.
Product main technical Specifications:

Specification	Unit	CK5112	CK5116	CK5120	CK5123	CK5126
Max.cutting diameter	mm	1250	1600	2000	2300	2600
Max.cutting height	mm	1000/1200	1000/1200/1400	1250	1350	1600/2000
Max.loading weight	T	3.2	5	8	8	10
Worktable diameter	mm	1000	1400	1800	2000	2250
Worktable speed range	rpm	6.3-200	5-160	3.2-100	3.2-100	2-63
Worktable step range	--	4 gears shift stepless / 2 gears shift stepless
Max.worktable torque	N.m	25000	32000	32000	32000	35000
Vertical tool post cutting force	N	20000	25000	25000	25000	25000
Vertical tool post vertical travel	mm	650	800	800	800/1000	800/1000
Vertical tool post horizontaltravel	mm	700	1050	1190	1320	1500
Turret rapid travel speed	Mm/min	2000
Tool bar size	mm	32*32/ 40*40	32*32/ 40*40	32*32/ 40*40	32*32/ 40*40	40*50/ 32*32
Crossbeam travel	mm	650/850	650/850/ 1050	850	1000	1200/1600
Beam lifting speed	mm/min	440
Machining precision	--	IT7
Positioning precision	mm	0.03
Repositioning accuracy	mm	0.015
Main motor	Kw	22	30	30	30	37
Machine weight	T	8.5/9.5	12.4/14/18	17	18	24/26
Dimension(L*W*H)	mm	2360*2280*2800	2830*2670*3010	3200*2800*3250	3210*2850*3300	3300*4000*3500

Detailed Photos

	Tool Holder: The default tool post is a four-position electric tool post, which is selected from Yantai Universal Brand and belongs to the best tool post supplier in China. Depending on the size of the machine tool, we also provide 6-position and 8-position tool post.
Chip Conveyor: If machine has full cover, the Chip Conveyor should be choose.It is suitable for steel industry scrap (material) fast delivery. With special structure can be better suitable for the delivery of chips under bad working conditions, such as steel pipe industry wire machine produced by the long strip of large roll chip.
	The worktable is made of high-hardness materials. Under the condition of ensuring large bearing capacity, the guide surface of the workbench base has been scraped, which makes the machining accuracy higher, which has a significant advantage over the same industry.
Electrical control BOXElectrical control elements are installed in the power distribution cabinet, and all operating elements are centrally installed in the hanging button station.

Sample Products

Company Profile

Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of various types of rotary joints and metal processing machinery. The plant covers an area of 100,000 square meters, with a construction area of 80,000 square meters. For decades, we have been providing all kinds of CNC milling machines, CNC machining centers, CNC lathes, lathes, milling machines, drilling machines, sawing machines, grinding machines, as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad.
Why choose us:
Factory with ISO,SGS ,CE, EAC, TUV, BV, ERP, SONCAP certificate.
More than 80000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience.
24 hours online service at any time.
Support ODM OEM.
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Warranty time is 2 years

Certifications


Cooperated Brands


FAQ


1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the MOQ?6.. What levell of series fo you provide?--->Your inquiry will be replied within 24 hours.
7. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Video. We can provide on-site training and commissioning Video. We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
8. What is our advantages?----> Competitive price: We can meet your budget and best-selling business very well. OEM Accepted: We can produce customized design. Good Service: We treat clients as friends and provide problem solving anytime you need. Good Quality: We have strict quality control system. Good reputation in the market. Fast & Delivery: We have big discount from forwarder (Long-term Contract).
9. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us
10.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
11.Agents Wanted:---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
