Automatic 3-7mm Anti-Crack Brc Mesh Welding Machine
Basic Info.
Model NO.
GWC-C-2000
Voltage
380V
Warranty
1 Year
Model No
Gwc-C-2000
Usage
Welding Mesh Panels
Max Mesh Width
2000mm
Mesh Length
6000mm
Wire Diameter
3.5-7.5mm
Line Wire Spacing
100-400mm
Cross Wire Spacing
25-400mm
Line Wire Feeding
Coil
Cross Wire Feeding
Pre-Cut Bar
Transport Package
Safety Export Package
Trademark
YZ
Origin
China
Production Capacity
20 Sets/Month
Product Description
Product DescriptionDedicated in resistance welding machine for more than 20 years,Yizhou provide you one-stope welding machine professional solution

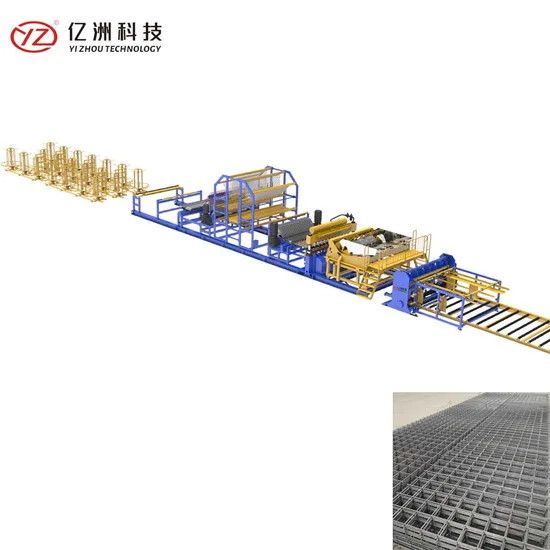

GWC-C-2000 wire mesh welding line is designed for producing reinforcement mesh used in the field of railway, high way, building construction etc.
The line wire spacing is more than 100mm adjustable, it can meet the requirement of various line wire spacing change.
We have experienced R&D department to customize the welding machine according to your requirement.
Product Parameters
| No. | Item | Specification |
| 1 | Wire Diameter | Φ3.5-7.5(mm) |
| 2 | Line Wire Spacing | 100-400mm(infinitely adjustable manually) |
| 3 | Cross Wire Spacing | 25-400mm(infinitely adjustable programming) |
| 4 | Max Mesh Width | 2000mm |
| 5 | Max mesh length | 6000mm |
| 6 | Number of Electrodes | 20 |
| 7 | Welding Speed | 7PCS/min(2*3 meters) |
| 8 | Rated Voltage | Three phase,380V,50Hz(according to requirement) |
| 9 | Rated Power | 5*150KVA |
| 10 | Line Wire Feeding | Coils |
| 11 | Cross Wire Feeding | Pre-cut bars ,automatic blanking |
| 12 | Material | Low carbon round rebars or ribbed rebars |
| 13 | Mesh Pulling Way | CNC servo motor |
Detailed Photos
Application
Contact Us
To know more information of machines,please contact us
Ms.Lancy
