Best Sprayed Concrete/Wet Spray System Concrete Spraying Machine - Lanhi Lhp16e, Available for Rent

Product Description

Product Description

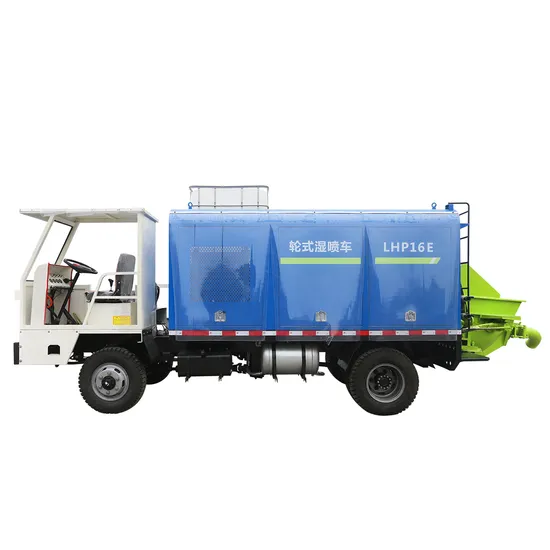

The LHP16E wheeled wet spray vehicle is suitable for wet spraying of concrete mortar. It is widely used in railways, highway tunnels, water conservancy, hydropower tunnels and culverts, subways, various underground militaries and civil buildings, various underground militaries and civil buildings, diverse underground projects and coal mine tunnels for spraying concrete mortar construction operations. The chassis of the engineering vehicle is designed to be strong and durable, with good passability and strong adaptability. The pumping system features less consumable materials and provides stable performance. The delivery volume of the concrete mortar is 8~163/h.
Fewer wearing parts, low maintenance and operating costs;
The accessories for the pumping system have a reduced need for consumables and are available at an affordable cost.
Product Parameters

Transport dimensions (L × W × H)	6500×2100×2450mm
Total weight	6t
Engine power	56kW
Installed electrical power	30kW
Operating mode	Electric construction
Control mode	Manual control
Operating voltage	380V
Operating range (width × height)	/
Chassis form	Operating chassis
Driving mode	One-way driving
Driving and steering methods	Four-wheel drive, front-wheel steering
Minimum ground clearance	240mm
Maximum grade	30%
Turning radius	6.5m (two wheels)
Maximum speed	30km/h
Approach angle/departure angle	21°/20°
Maximum spraying volume	16m³/h
Maximum particle size for spray aggregate	15mm
Hopper capacity	0.3m³
Capacity of quick-setting agent tank	1m³
Form of quick-setting agent pump	Metering pump
Discharge volume	/
Discharge pressure	/

Detailed Photos
FAQ
1,What can you buy from us?
Our current main products include comprehensive solutions for underground engineering machinery and intelligent mining equipment. This includes tunnel boring machines, integrated arch anchoring and spraying trolleys, arch anchoring trolleys, integrated arch drilling trolleys, arch frame installation trolleys, wet spraying rigs, and rock drilling rigs. We have the capacity to provide customers with integrated total solution services.
2,What about the MOQ?
The Minimum Order Quantity (MOQ) is 1 set.
3,What payment terms do you accept?
We accept T/T with a 50% prepayment.
4,What about the order lead time?
The usual lead time is 15 days.
5,What logistics methods can you use for shipment?
Truck delivery can be arranged in Central Asia and Russia, and you can also choose rail and sea shipping.
6,How is your delivery time?
The delivery time via China-Europe trains is 15 to 20 days, while sea shipping takes approximately 2 to 3 months.
7,How about your customer service and after-sales service?
We offer 24/7 online support and provide after-sales support in Russia and Central Asia.
