Basic Info.
Product Size
270*730*520mm
Crushing Degree
Fine Grinding Machine
Crushing Style
Extruding and Milling
After-sales Service
Online Support
Transport Package
Wooden Box
Production Capacity
10-50kg/H
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description

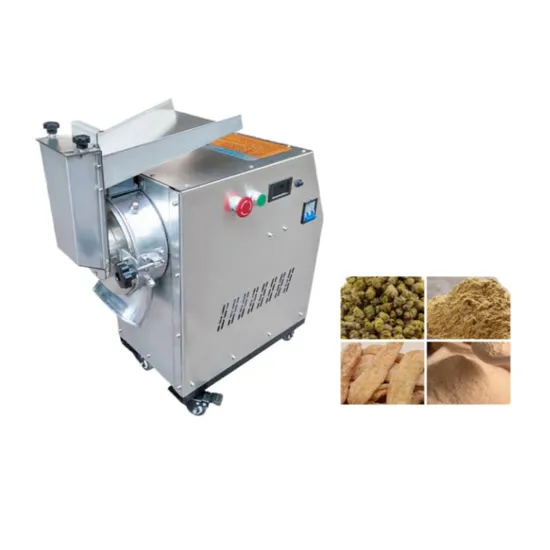

Product DescriptionThis machine is suitable for crushing and processing various varieties of licorice, ores, and chemical raw materials in food, chemical, metallurgical, geological, agricultural, scientific research and other institutions. The entire product is made of stainless steel and the contact materials are made of 304 stainless steel. The horizontal vertical cutting process has a fast cutting speed and a fineness of 20-120 mesh. The working principle is driven by an electric motor, and the machine spindle rotates at high speed. The movable and fixed discs collide and rub with each other, resulting in crushing. The crushed material is subjected to rotating centrifugal force and filtered through the sieve before entering the capture bag.Water-cooled grinder with small water pump.
Continuous feeding, continuous crushing, ultra-fine crushing, no dust, high power, high efficiency, there are 4 screens inside, the fineness can be adjusted according to requirements, and the processing is 20-50 kg per hour. It is suitable for , etc. The crusher is water-cooled and is suitable for crus materials with high power.
Product Parameters
Model | XD-50A |
Voltage | 220/380v |
Power | 2.5kw |
Speed | 5600R/min |
Yield/time | 10-50kg/h |
Product size | 270*730*520mm |
Product weight | =60kg |
