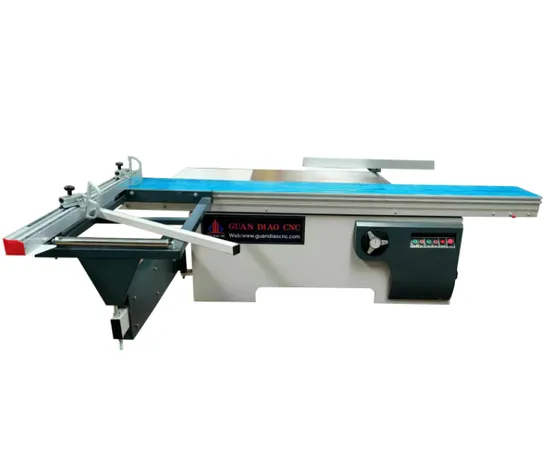

2800mm 3000mm 3200mm Heavy Duty Woodworking Sliding Table Saw Vertical Panel Saw Machine for Wood

Product Description

2800mm 3000mm 3200mm Heavy Duty Woodworking Sliding Table Saw Vertical Panel Saw Machine for Wood
Product Description
Woodworking Sliding Table Saw Description:
Sliding Saw machine is mainly used for cutting sheets into sized parts.It is easy to cut plywood and melamine sheets into cabinet components.Our sliding table saw is applied to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, solid wood and others wood.
Product Parameters
Parameters of sliding table saw

Mode	2.8m 45° MJ45	2.8m 90° MJ90
Dimension of sliding table	2800X320mm	2800*320mm
Length of cut between saw blade and rip fence	2750mm	2750mm
Width of cut between saw blade and rip fence	1250mm	1250mm
Saw blade diameter	300mm	300mm
Height of cut	80mm	80mm
Speed of main saw spindle	4000/6000rpm	4000/6000rpm
Main spindle diameter	30mm	30mm
Tilting saw blade	0-45°	90°
Main motor	4.0/5.5kw	4.0/5.5kw
Scoring saw blade diameter	120mm	120mm
Speed of scoring saw blade	8000rpm	8000rpm
Scoring saw diameter	20mm	20mm
Scoring motor	0.75/1.1kw	0.75/1.1kw
Overall dimension	2850*3050*900mm	2850*3050*900mm

Detailed Photos
Details of sliding table saw

45°/90° saw
This machine can adjust 45° or 90° saw tooth, suitable for more range of wood use.
Double saw blade structure
There is two blades on machine (main blade and scoring blade),Chips and burrs can be avoided when cutting boards.


Electric lifting and tilting control panel
Intelligent control panel, with angel digital display, electronic lifting and tilting.More convenient to use.

High-power and pure copper motor
High power and pure copper motors provides stronger power to ensure precise cutting and prevent edge breakage during plate cutting.

Thickened sliding table
Round guide rails sliding table, with stable structure and high pressure. It runs stable when cutting heavy plates to ensure the accuracy of the machine using.
Machine features
1) effort to promote large travel convenient operation
(2) with sedate portable towing bracket, stable operation
(3) sliding table Settings and the main saw blade can be adjusted for 45 degrees, enlarge the using range of the sawing machine
(4)Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC panels,organic glass plates and soild wood and others with wood structure and similar hardness.
(5)Double layer of sliding table.
(6)Made of high-strength extruded aluminum alloy,movable table is high in strength and won't bend.
(7)Precision round stick rail.
Samples
Woodworking sliding table saw applications
Precision Auto Wood Sliding Table Panel Saw Machine For Woodworking is suitable for processing all density boards, shaving boards artificial boards, ABS boards, PVC boards, plexiglass plates, genuine woodboards, and other boards with similar structures and hardness.
It is widely applicable and not limited to materials. According to the cutting boards, it is suitable for processing various density boards, artificial boards, fiberboards, creative boards, ABS boards, PVC boards, plexiglass boards, and boards with similar hardness.
