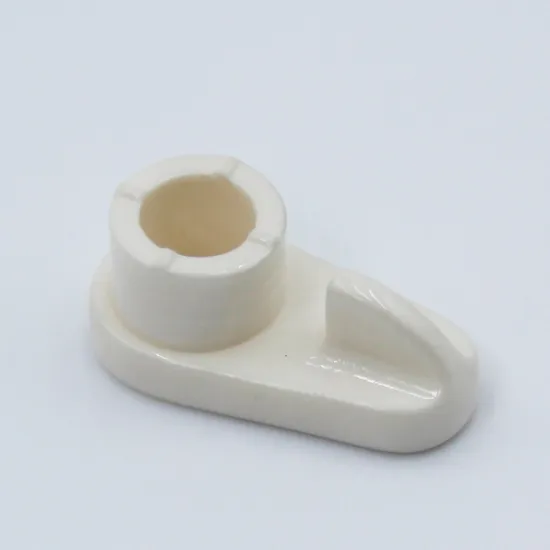

Ceramic Stackable Guides Ceramic Trap Guide for Textile Machine

Product Description

Product Description:
Ceramicproducts is applicable for wire or silk rolling of various winding machines and textile machinery. It is made of precise ceramic and polished up to Ra0.2, high hardness and smooth surface enable the enameled wire free from hurt during surface sliding.
The ceramic products is used to set less (friction is also less) location of pressure right. For cost reduction, according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly, is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time as mark throw and two-sided super-accurate throw. Specification of China eye many, select and use specification listing in common use in support a customer the day after tomorrow now, also may demand making to order according to the customer.
The alumina ceramic products(zirconia ceramic products) is one of our feature products with a competitive price. Our company has many types of ceramic products, complete molds, and models, welcome to consult.

Brand Name:	ZTF
Material:	95%AL2O3, 99%AL2O3 or titanium oxide
Application:	Ceramic guide for wire
Polish:	Fine Polish degree Ra0.2
Hardness:	≥HRA85
Volume Density:	≥3.60
Bending Strength:	≥280 Mpa
Basic Tolerance:	+/-1%
Color:	Pink, White, Light Pink, Black, Dark Red
Molding Method:	LOW PRESSURE IN JECTION

Well Polished Low Friction High Purity Alumina Textile Ceramic products.
The main features of textile ceramic eyelet
1. Low yarn tensions without any yarn damage
2. Long service life on both special yarns and raw materials with aggressive additives
3. Highest yarn cleanliness without any fault on silk occasion
3. Excellent mechanical strength, fracture toughness, and bending strength
4. Exceptional wear resistance and hardness better than metal ones
5. Good insulation, free of static electricity, resistant magnetic
6. Superb thermal conductivity coefficient and thermal shock property
7. Corrosion resistance in harsh working conditions
8. Excellent thermal shock resistance and good thermal stability
9. Nox-toxic, healthy material, eco-friendly material
10. Meet with RoHS, REACH regulation completely
The specification of textile Ceramic products:
Material option Alumina(Al2O3), Zirconia (ZrO2), Titania (TiO2)
Forming methods Dry pressed, Ceramic injection molding, Hot pressed
Specification OD can be from 1 to 50mm
Precision processing Precision Grinding, Polishing, Lapping,
Key parameters Fine grade roughness to be 0.4mm, diamond-like polish to be Ra0.1
Surface quality Free of cracks, foreign contamination, and mirror surface
