G1.6 G2.5 G4 Gas Meter Test System 0.016m3/H~6m3/H

Product Description

Product Description

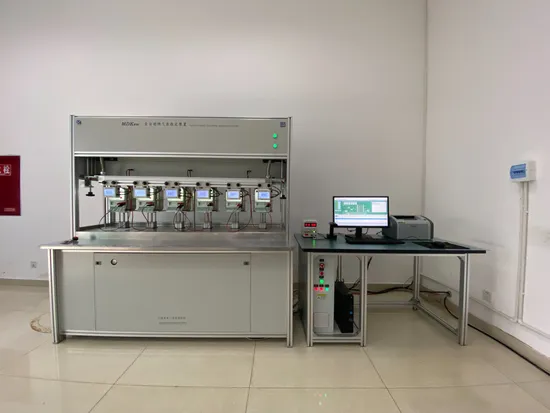

Sonic Nozzle Test Bench For Diaphragm Gas Meters G2.5, G4 G6, Test Bench
The Sonic Nozzle adopted as the standard, according to (JJG577-2012 Diaphragm Gas Meters,EN 1359..) Verification Regulation, used for G1.6,G2.5 and G4 type diaphragm gas meters, apply to Measurement And Detection Organization, Gas Company and Gas Meter Production Enterprise. There are four types respectively 4pcs, 6pcs, 8pcs and 12pcs gas meters tested in order to satisfy the requirement of different users.
Parameters

Tech Index
Uncertainty	≤ 0.5%, ≤ 0.3%
Pressure Measurement	(60~110) kPa (absolute pressure)
Micro Differential Pressure Error	(-1000~1000) Pa, ±0.5%
Environment Temperature	(20±2)ºC
Test Bench Size	L*W*H(6pcs gas meters) 1800mm*720mm*1750mm
Gas Meters To Be Tested	G1.6,G2.5 and G4 (0.016m3/h~6m3/h)
Temperature Test	(10~30) ºC, ±0.3ºC
Power	380V±38V AC 50Hz
Relative Humidity	45%~70%
Operation Desk Size	L*W*H 1300*705*740

Product Features 1. Indication Error and Pressure Loss both can be tested by one bench continuously at a time
2. Meters to be clipped by pneumatic intelligently, one-touch control, easily and efficiently.
3. Flow Rate Qmax, 0.2Qmax, Qmin can switch automatically , left and right gas-inlet can switch automatically .
4. High accuracy of Temperature and Pressure Test, measurement value can be transmitted rapidly and immediately by fieldbus.
5. Adopt Intelligent Image Capture Terminal, can recognize the gas meter number automatically.
6. Four types of Adjustable Powers provided in order to test intelligent gas meters conveniently.
7. Simple and Graceful appearance, Modern and Technological. Detailed Photos
