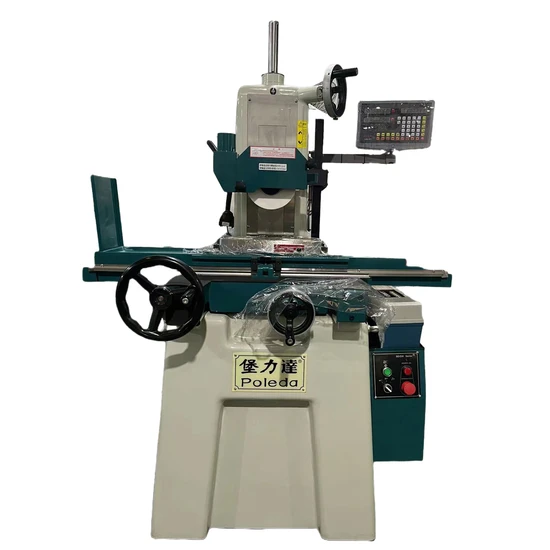

Wholesale Precision 618s Surface Grinding Machine for Manufacturers

Product Description

Product Description
Outstanding Features of Our Surface Grinding Machine:
Exceptional Efficiency: Equipped with a high-speed spindle, our surface grinder significantly boosts processing speed, enhancing overall productivity.
Extended Durability: Meticulously designed and manufactured, our surface grinding machine boasts an impressive service life, ensuring long-term reliability.
Economical Maintenance: Enjoy the benefits of simple maintenance and low upkeep costs with our user-friendly surface grinding machine.
Effortless Operation: With its intuitive controls, our surface grinder minimizes training time and reduces operator costs.
Uncompromised Safety: Engineered with high safety standards, our surface grinding machine guarantees operator well-being.
Robust Structural Integrity: Constructed predominantly from cast iron, our surface grinder features a bed, column, workbench, grinding wheel, and frame, ensuring exceptional shock resistance, wear resistance, and thermal stability for unwavering rigidity.
Versatile Application: These exceptional performance characteristics make our surface grinding machine ideal for industrial production, capable of grinding various surfaces and complex forms without requiring mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Crafted from premium high-grade cast iron, every main casting of our machine undergoes a meticulous annealing treatment designed to eradicate internal stresses. This rigorous process guarantees exceptional precision, unparalleled rigidity, and an extended machine lifespan. Slide Way: Featuring a double V slide way, both on the left-right and front-back axes, our machine is enhanced with wear-resistant resin TI URCITE-B and precision shovel flower. This ensures not only ultra-smooth and wear-resistant sliding but also makes the machine impeccably suited for intricate forming and grinding tasks.
Cylindrical Straight Spindle: Our machine is equipped with a P4 ultra-precision angular roller bearing. This advanced design ensures minimal noise and zero vibration, delivering substantial torque even at high speeds. It is perfectly tailored for heavy-duty cutting as well as a variety of forming grinding operations.
Automatic Lubrication System: Our machine is outfitted with a cutting-edge circulating automatic lubrication system. The lubricating oil initiates its cycle as soon as the main spindle begins operation, allowing for forced lubrication of each screw and slide. This dramatically reduces the wear degree of the slide. Additionally, an oil mirror, strategically installed above the column, enables real-time monitoring of the lubrication condition, ensuring optimal performance at all times.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific needs for color, logo, and other customizations. For standard items in stock, the MOQ is just 1 set.
2.How do you control the quality of the products?
A. Quality is our utmost priority. We uphold stringent quality control measures to ensure our standards are consistently met. Our commitment is to provide customers with superior quality, competitive pricing, and exceptional service.
3.What are the main products of your company?
A: Dongguan Poleda Precision Machinery Co., Ltd. specializes in manufacturing a wide range of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We accept a variety of trade terms including Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms are T/T (Telegraphic Transfer), with a 30% initial payment upon order placement and the remaining 70% balance before shipment.
6.What CNC systems do you use?
A: We offer an array of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Please send us the drawings and specifications of your products and their applications. Our experts will recommend the most suitable machines tailored to your needs.
8.What kind of packaging do you offer?
A. We generally use durable plywood cases to ensure all goods are delivered in perfect condition. Customized packaging is available upon request.
9.Can your plant do OEM?
A: Yes, we offer both OEM and ODM services to meet any customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty from the date of delivery. Additionally, we provide lifetime service support for our machines, even beyond the warranty period.
