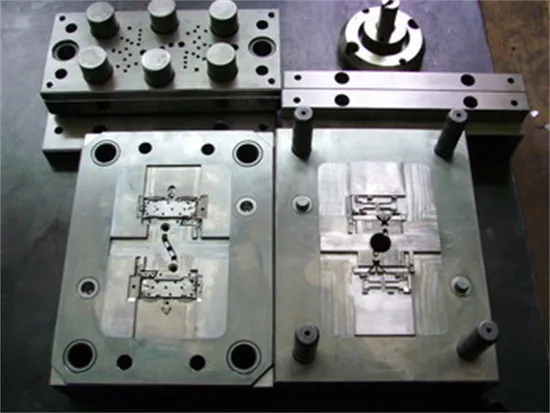

Planning The Runner System Layout
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Fl-21
Shaping Mode
Injection Mould
Surface Finish Process
Polishing
Mould Cavity
Single Cavity
Plastic Material
ABS
Process Combination Type
Compound Die
Application
Car
Runner
Hot Runner
Design Software
Autocad
Installation
Mobile
Standard
Hasco
Customized
Customized
OEM
Yes
Transport Package
Box
Specification
TBA
Trademark
Flying Eagle
Origin
China
HS Code
39231000
Production Capacity
500PCS/Year
Product Description
Basic layoutsThere are three basic runner system layouts typically used for a multi-cavity system.
These layouts are illustrated in Figure 1 below.
l Standard (herringbone) runner system
l "H" bridge (branching) runner system
l Radial (star) runner system
FIGURE 1. Basic runner system layouts
Balanced vs. unbalanced layouts
Balanced layouts
The "H" (branching) and radial (star) systems are considered to be naturally balanced. The naturally
balanced runner provides equal distance and runner size from the sprue to all the cavities, so that
each cavity fills under the same conditions.
Unbalanced layouts
Although the herringbone is naturally unbalanced, it can accommodate more cavities than its
naturally balanced counterparts, with minimum runner volume and less tooling cost. An unbalanced
runner system can be artificially balanced by changing the diameter and the length of the runner.
Automatic balancing
Runner System Layout
Runner balancing can be accomplished automatically with C-MOLD runner balancing analysis.
