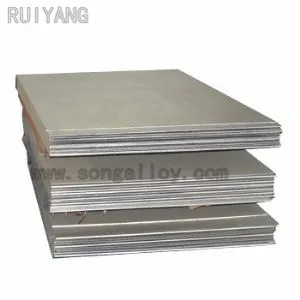

Pure Titanium Industries Gr2 Titanium Plate Sheet for Sale

Product Description

Welcome to SHAANXI RUIYANG IMPORT EXPORT CO., LTD. Product Description: Our Titanium Sheet & Plate range from 0.3mm to 100mm thick, available in cold roll and hot roll. Sheet sizes range from 0.3mm to 4.1mm thick, up to 1500mm width in cold roll, while Plate sizes range from 4.1mm to 100mm thick, up to 3000mm width in hot roll. We follow processing standards such as ASME SB/B265, AMS 4911, AMS 4919, and more.
Key Features: Available in various thicknesses and widths Processed through hot rolling and cold rolling techniques Compliant with industry standards like ASTM and ISO Applications: Our Titanium Plate & Sheet are ideal for applications such as firewalls, driver protection, valve covers, and more. They are versatile and can be used in various industries including automotive, aerospace, and jewelry making.
Contact us today to learn more about our Titanium Sheet & Plate offerings!

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)											MECHANICAL PROPERTIES (min)
ASTM B265	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
												Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15

TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE	UNS NO.	WIRE	BAR	SHEET	PLATE	TUBE	PIPE	FITTING	FORGING	FASTENER
Ti Grade 1	R50250	√	√	√	√	√	√	X	√	√
Ti Grade 2	R50400	√	√	√	√	√	√	√	√	√
Ti Grade 3	R50550	√	√	√	√	X	X	X	√	√
Ti Grade 4	R50700	√	√	√	√	X	X	X	√	√
Ti Grade 5 (6Al 4V)	R56400	√	√	√	√	X	X	X	√	√
Ti Grade 7 (0.2Pd)	R52400	√	√	√	√	√	√	√	√	√
Ti Grade 9 (3Al 2.5V)	R56320	√	√	√	√	√	X	X	√	√
Ti Grade 11	R52250	√	√	√	√	√	√	X	√	√
Ti Grade 12 (0.3Mo 0.8Ni)	R53400	√	√	√	√	√	√	√	√	√
Ti Grade 17	R52252	X	√	√	√	√	√	X	√	√
Ti Grade 23 (6Al 4V Eli)	R56401	√	√	√	√	X	X	X	√	√
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.

Product Description: Discover the top-quality Gr2 Titanium Plate Sheet for Sale from SHAANXI RUIYANG IMPORT EXPORT CO., LTD. Perfect for industrial and medical applications, this titanium plate is hot rolled for exceptional quality.

Product name	Specifications
Titanium Rod & Bar & Ingots	Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab	(80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings	Weight per piece≤2000kg
Titanium Hot-rolled plates	(4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled Sheet	(0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Foil / Strips	(0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes	Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards	GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade	GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

Titanium Production Process Titanium Production Equipment Contact SHAANXI RUIYANG IMPORT EXPORT CO., LTD. for Pure Titanium Industries Gr2 Titanium Plate Sheet. ONE STOP SERVICE for Titanium products.
Type: Titanium Sheets Application: Industrial, Medical Process: Hot Rolled
