High Quality Small CNC Milling Machine - Kbm7124

Product Description

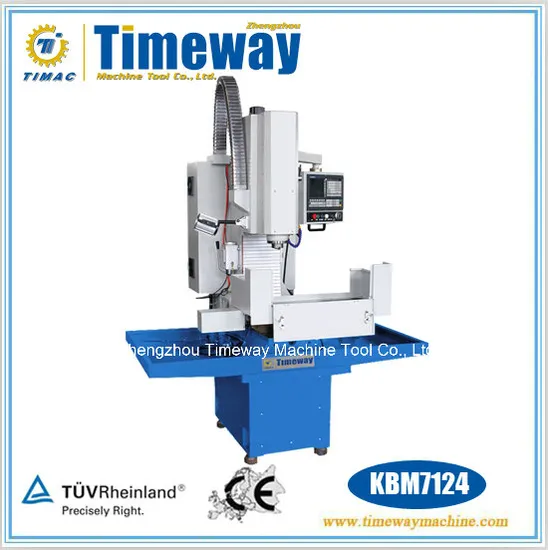

High quality small CNC Milling Machine - KBM7124

Key Features:
4pcs tool stations on worktable with high efficiency.
It can finish all process of surface machining, hole
Machining and tapping by clamping workpiece.
High and low step speeds available and stronger
Torque for low step speed.
3 axes transmission by precision ball leadscrew,
servo motor driven.
Machine body and stand are designed separately
for easy and flexible installment by user.

Standard Configuration:
CNC controller: Siemens SINUMERIK 808D
2.2/3.7kw servo main motor
BT30 spindle with 6000 r.p.m
4 station tool magazine (simple)
Manual lubrication system
Coolant system, Working light
Operator manual in English

Parameter:

Model	KBM7124
Table size (W×L)	240×800mm
Table travel (X/Y/Z)	430×280×400mm
No./width/distance of T-slot	3/16/60mm
Max.loading weight on worktable	60kg
Distance from spindle nose to table	50-450mm
Distance from spindle to column	297mm
Spindle taper	BT30
Spindle speed range	6000r.p.m
Tool clamping way	Pneumatic
Tool magazine capacity	4pcs simple ATC
Max.size of tool	Φ 60×175mm
Max.loading weight of tool	3.5kg
Rapid feed speed ( X,Y,Z)	6m/min
Main motor power	2.2/3.7kw
Positioning accuracy	0.04mm
Repeatability accuracy	0.02mm
Machine weight	1000kg
Overall dimension (L×W×H)	1640×1205×1950mm
Packing size (L×W×H)	1900×1620×2480mm

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
