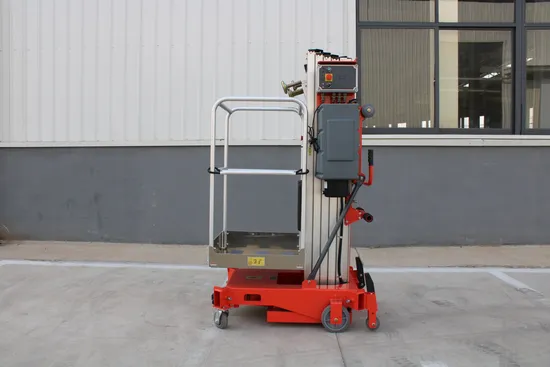

Gtwy1-9 9m 11m Aluminum Ladder Lift Platform Movable Man Lift Aerial Lift Platform Single Telescopic Boom Lifter Ladder Electric Cherry Picker with CE
| US$3,000.00-4,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTWY1-9
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Push Around
Driven Type
AC&DC
Running Mode
Moving
Feature
Easy Operation
Certification
CE
Max. Working Height
11.2m
Max. Platform Height
9.2m
Loading Capacity
150kg
Occupants
1
Platform Dimension
0.67m X 0.66m
Transport Package
Nude Packing
Specification
3000
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
4000 Pieces/Year
Packaging & Delivery
Package Size
140.00cm * 80.00cm * 200.00cm
Package Gross Weight
420.000kg
Product Description
| Model | GTWY1-5 | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 |
| Max. Working Height | 6.7m | 8.2m | 9.8m | 11.2m | 12.4m | 14m |
| Max. Platform Height | 4.7m | 6.2m | 7.8m | 9.2m | 10.4m | 12m |
| Loading Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg |
| Occupants | 1 | 1 | 1 | 1 | 1 | 1 |
| Platform Dimension | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m |
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | 1.99m | 2.68m |
| Overall Width | 0.78m | 0.78m | 0.78m | 0.78m | 0.78m | 0.81m |
| Overall Length | 1.24m | 1.24m | 1.36m | 1.4m | 1.42m | 1.46m |
| Outrigger coverage | 1.7m x 1.7m | 1.7m x 1.7m | 1.7m x 1.7m | 1.8m x 1.8m | 1.9m x 1.8m | 2m x 1.9m |
| Total Weight AC | 330kg | 350kg | 370kg | 390kg | 420kg | 490kg |
| Total Weight DC | 355kg | 375kg | 395kg | 415kg | 445kg | 515kg |
| Power AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
| AC Motor | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
| Power DC | 12V | 12V | 12V | 12V | 12V | 12V |
| DC Motor | 1.3KW | 1.3KW | 1.3KW | 1.3KW | 1.3KW | 1.3KW |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
Features
Outriggers with interlock
AC power to platform
Emergency stop button
Emergency lowering system
Easy loading in pickup trucks
Two controllers operation
Forklift pockets
Transport tie hole
Deadman Switch
Cylinder holding valve
Options:
Overload sensor with alarm
Beacon
All motion alarm
Leveling sensor
