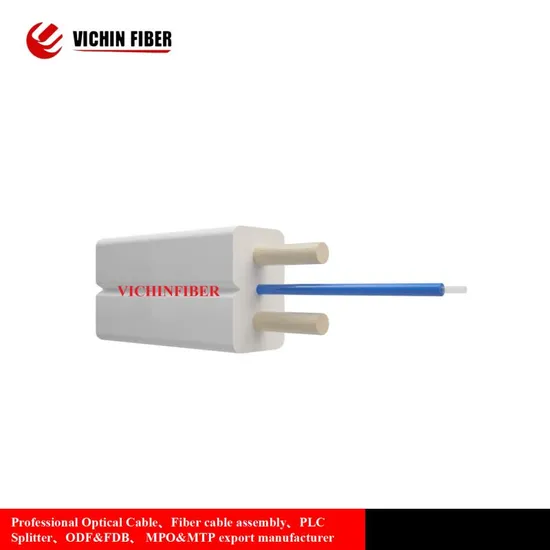

Gifxh Indoor 1 Core Bow Type FTTH Drop Cable

Product Description

--- Product Description ---`

Product Name	Bow-type drop cable	Attenuation(max.)	1310nm	≤0.36dB
Product Type	GJFXH		1550nm	≤0.22dB
Cable Dimensions	3.0x2.0mm	Tension	Long Term	40N
Strength Member	2x0.5mm FRP		Short Term	80N
Fiber Number	1	Crush	Long Term	500N
Fiber Type	G657A1,G657A2 orcustomized		Short Term	1000N
Cable Jacket	LSZH	Installation temperature	ºC	-30--+50
Cable Color	White,Blue,Green,Red or orcustomized	Operating Temperature	ºC	-30--+50
Specification	ROSH,UV,Flame retardant	Packge	2km/Roll

Application
* Used as access building cable;
* Used in indoor cabling, especially used for FTTH.
Features
* Good mechanical and environmental characteristics;
* Flame retardant characteristics meet the requirements of relevant standards;
* The mechanical characteristics of jacket meet the requirements of relevant standards;
* Soft, flexible, easy to lay and splice, and with big capacity data transmission;
* Meet various requirements of market and clients
Options
* Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
* Jacket Material: Environmental flame retardant poly vinyl chloride (PVC), environmental low smoke zero halogen flame retardant poly ole fin (LSZH), environmental halogen flame retardant poly ole fin (ZRPO), or other contracted material;
* Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
* Cable Dimension: The nominal cable dimension, or other contracted dimension;
* Delivery Length: 1km or 2km, or other contracted length;
* Other Requirements: Other contracted special requests.
